| Type: |
Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 6 m / 2 m / 70 cm
RX: General coverage
23 cm/10 W option. |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
Max 100/100/100/50 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
281*107*345 mm |
| Weight: |
7.5 Kg |
| Manufactured: |
2000-20xx |
| Other: |
DSP. General coverage RX
Built-in 1K2/9K6 TNC.
Auto-AT on HF/6 m. DX-Cluster functions.

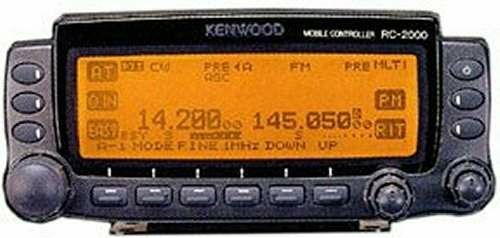

Operates via computer or optional RC-2000 control head |
| Related Documents: |
User Manual (2.75 MB)
Brochure (1.25 MB) |
