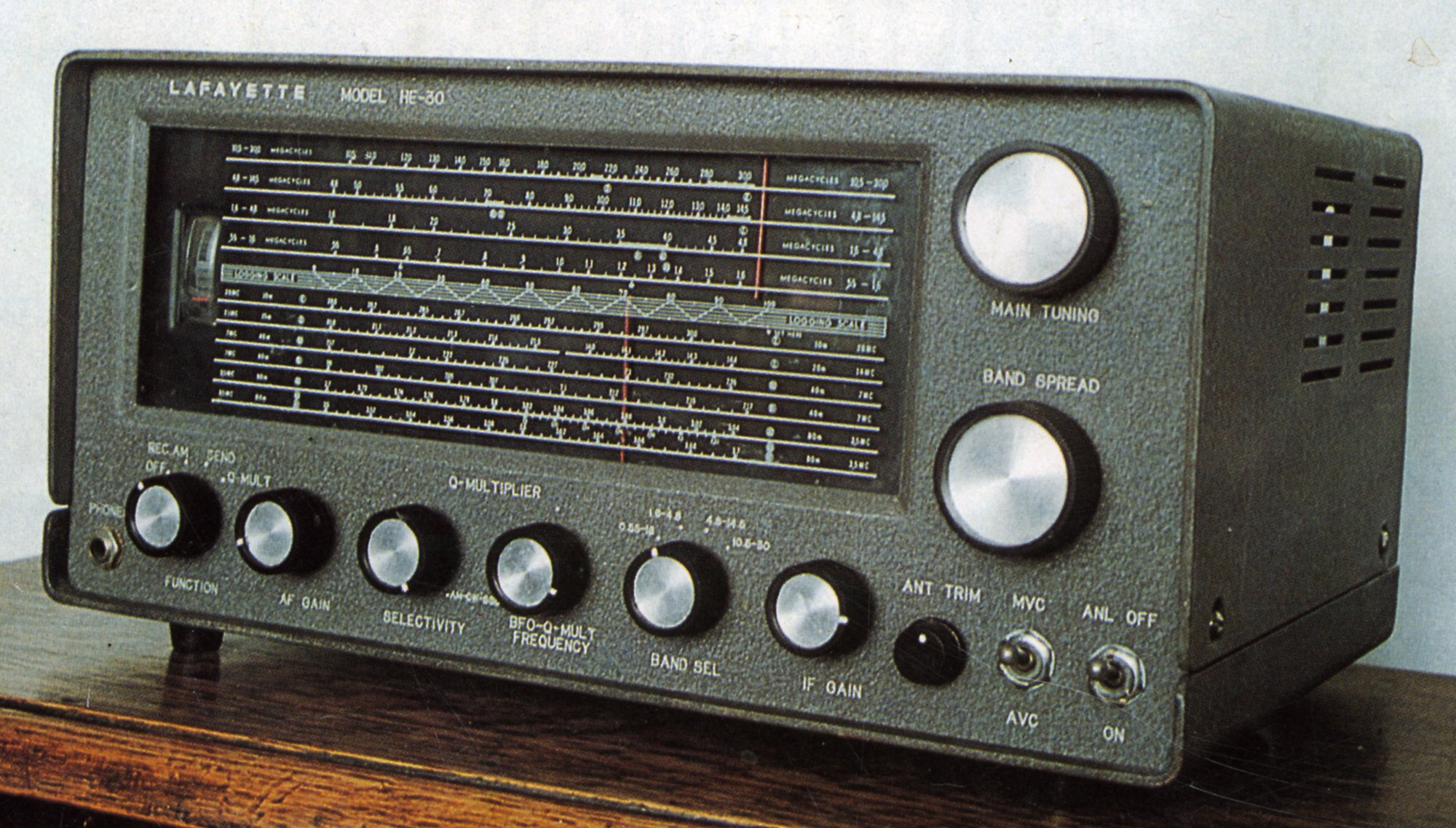

Lafayette HE-30
| Type: |
HF Receiver |
| Frequency Range: |
0.55-30 MHz |
| Mode: |
AM/CW |
| Sensitivity: |
1 uV (10 dB S/N) |
| Selectivity: |
4 KHz (-6 dB), 20 KHz (-60 dB) without Q-multiplier
1.6 KHz (-6 dB) with Q-multiplier |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
? |
| Aerial Input: |
50-400 ohms |
| Dimensions (W*H*D): |
15 x 7 x 10" |
| Weight: |
21 lbs |
| Manufactured: |
1961-196x |
| Other: |
9 Valves. Also known as KT-320 in kit form |
| Related Documents: |
User Manual (1.95 MB) |
|
