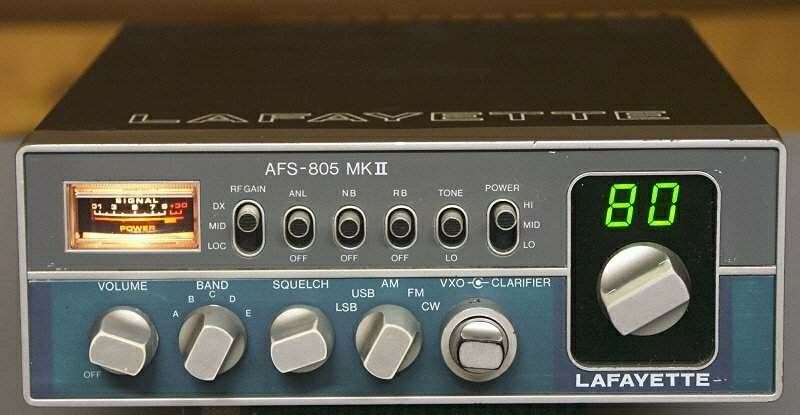

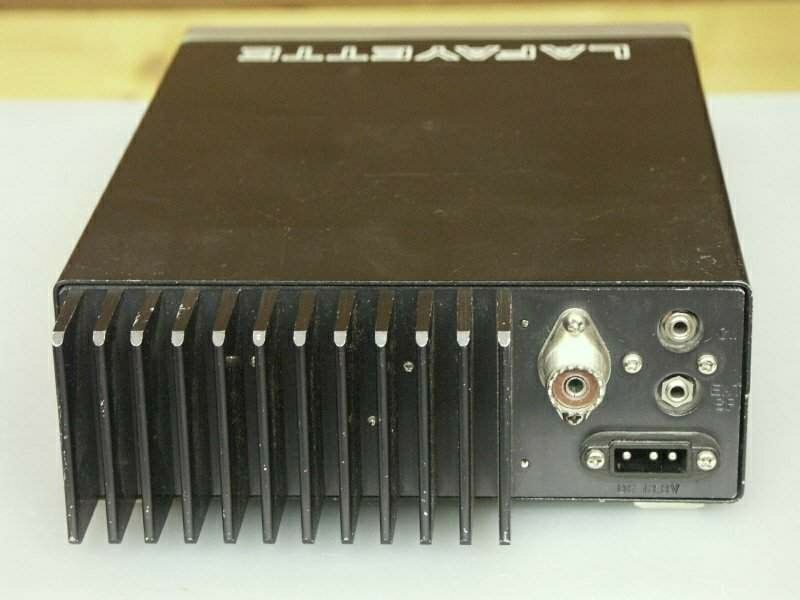

Lafayette AFS-805MKII
| Type: |
VHF Transceiver |
| Frequency Range: |
26.515-28.775 MHz or 26.065-28.305 MHz |
| Channels: |
200 |
| Modes: |
AM/FM/SSB |
| Frequency control: |
PLL (PLL02A) |
| Power output: |
AM: Lo: 0.5 W, Mid: 4 W, Hi: 40 W
FM: Lo: 0.5 W, Mid: 4 WHi 40 W
SSB: Lo: 2.0 W, Mid: 10 WHi 82 W
CW: Lo: 0.5 W, Mid: 4 WHi 40 W |
| Sensitivity: |
AM: 1 uV (10 dB S/N)
FM: 1 uV (20 dB S/N)
SSB: 0.5 uV (10 dB S/N)
CW: 0.5 uV (10 dB S/N) |
| Selectivity: |
60dB @ 10kHz |
| Image rejection: |
Over 50dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.7 A
TX: Max 9 A |
| Dimensions (W*H*D): |
190*65*255 mm |
| Weight: |
2.95 Kg |
| Manufactured: |
1982-198? (PCB by CYBERNET Enterp.Co Japan) |
| Other: |
|
| Related Documents: |
|
 |
