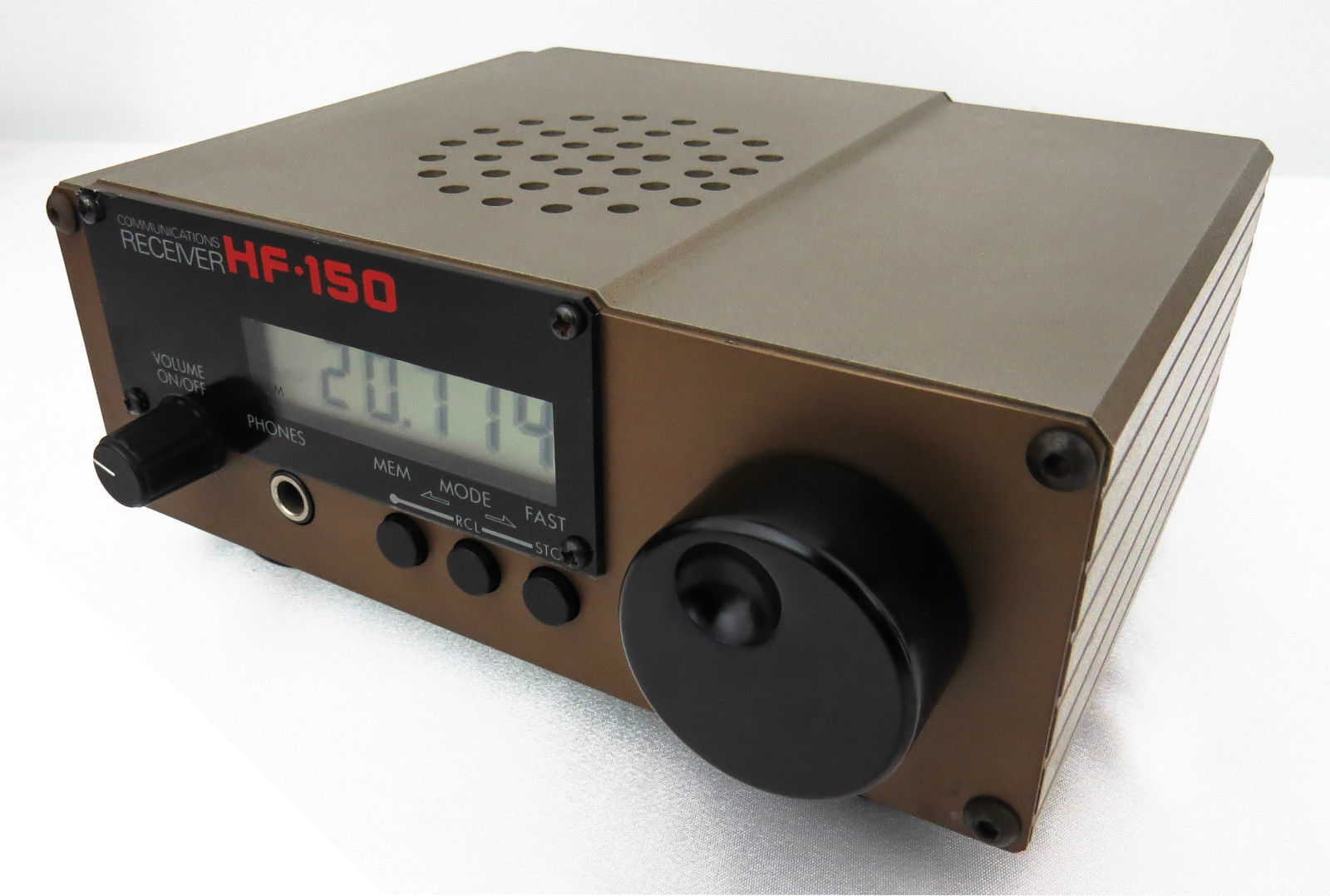

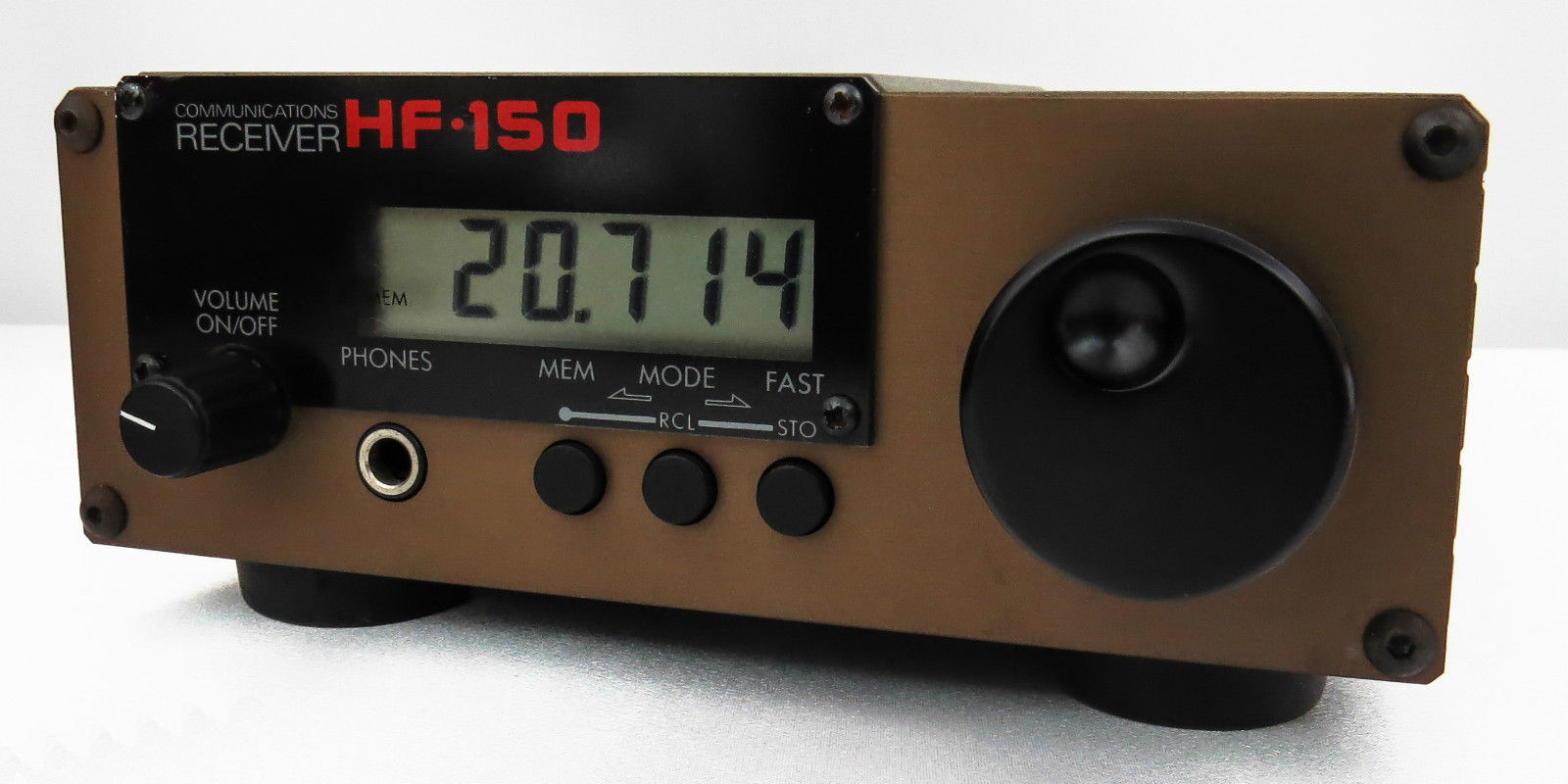

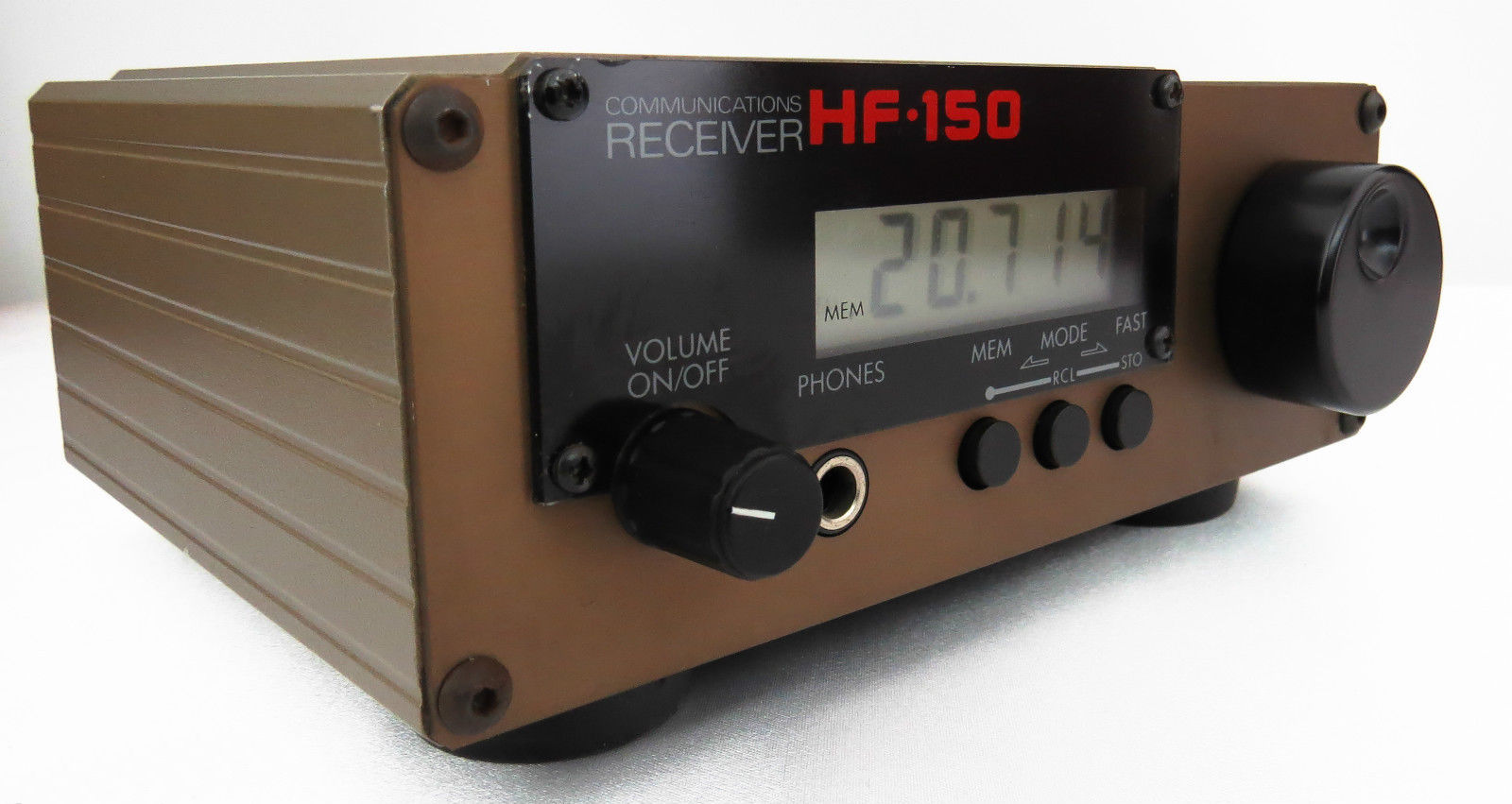

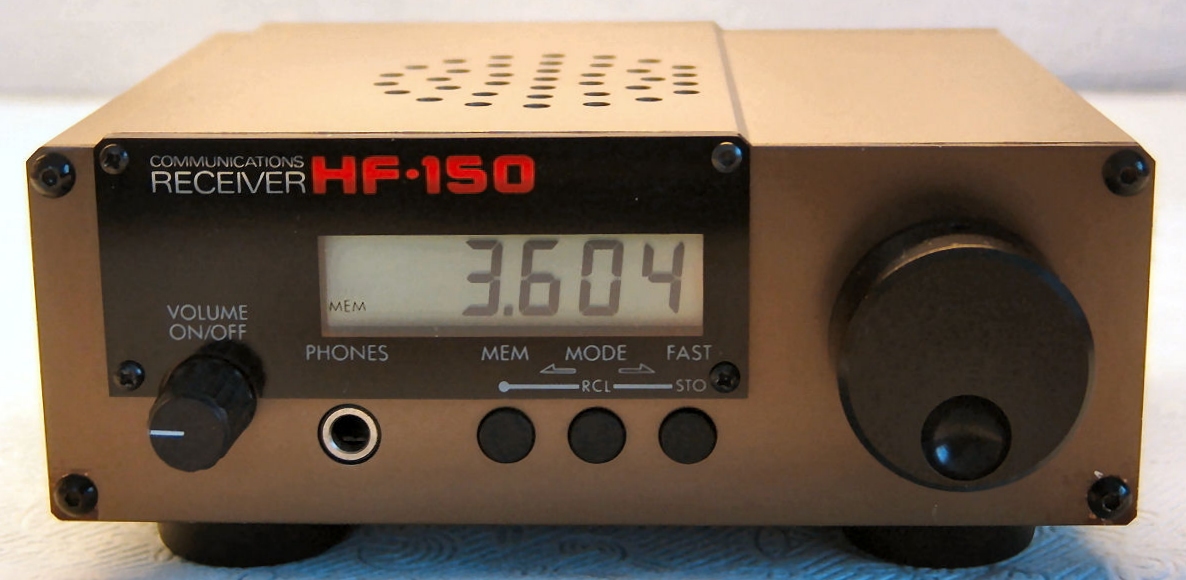

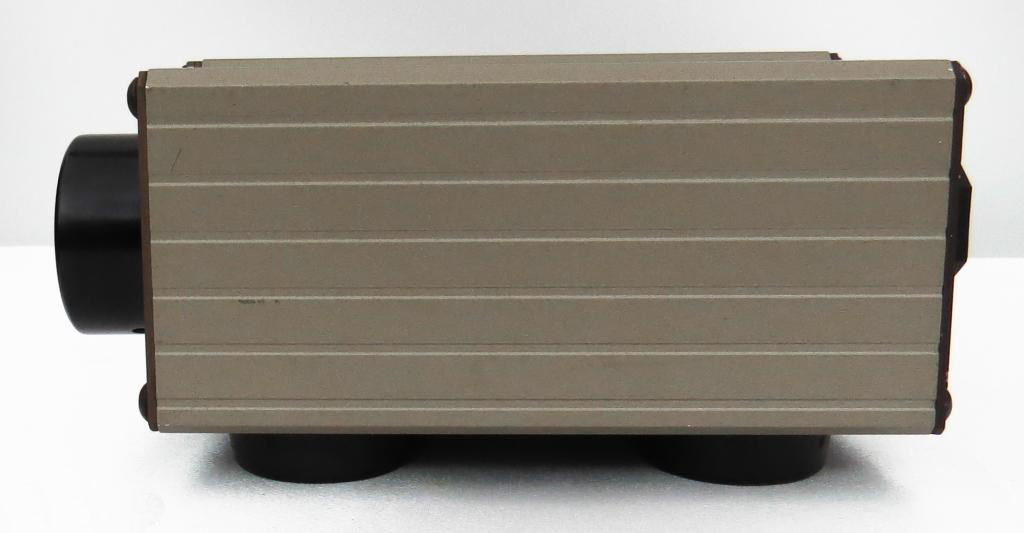

Lowe HF-150

Type: HF Receiver
Frequency Range: UK: 30 KHz-30 MHz
Modes: LSB, USB, Synchronous AM (USB,LSB,DSB)
Memory Channels: 60 channels (memory held in eeprom for > 10 years)
Sensitivity: Into 50 ohms aerial input, for 10 dB S/N:
AM: <2 uV (50-500 KHz), <1 uV (0.5-30 MHz)
SSB: 1 uV (50-500 KHz), <0.5 uV (0.5-30 MHz)
Selectivity: 2.6 KHz (-6 dB), 4.1 KHz (-60 db) with narrow filter
6.5 KHz (-6 dB), 10.2 KHz (-60 dB) with wide filter
Image rejection: Better than 65 dB

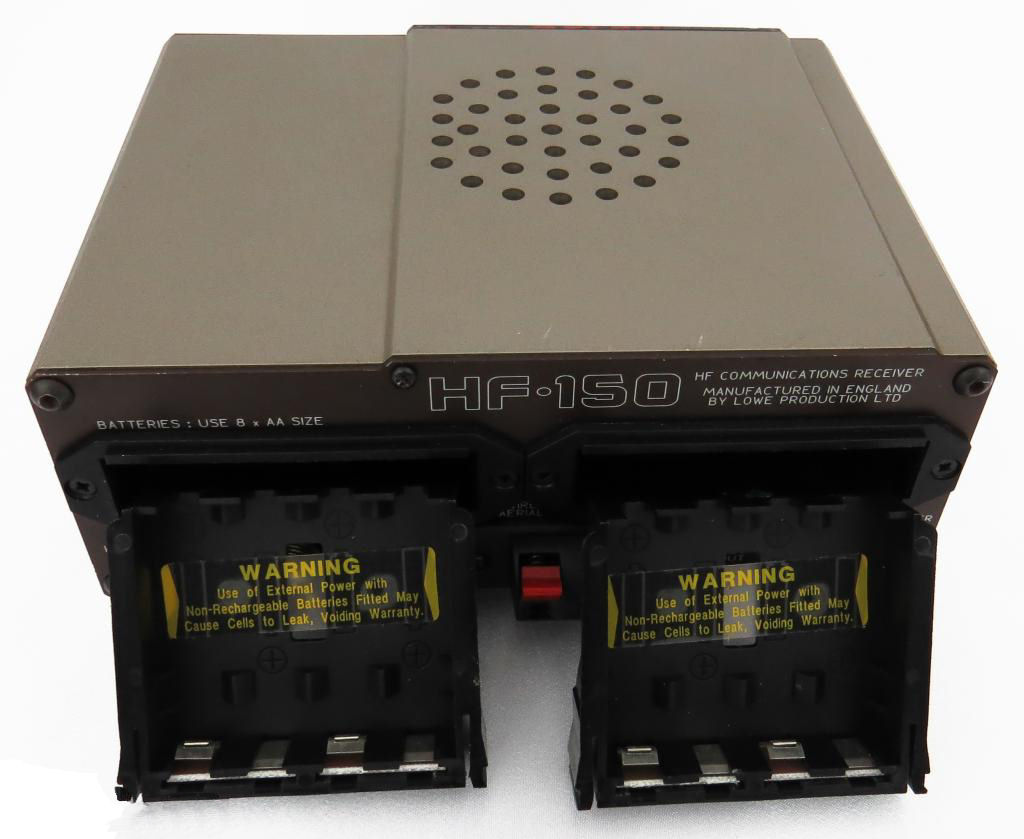

Voltage: 12 VDC external or 8*LR6/AA internal
Current Drain: 130-300 mA

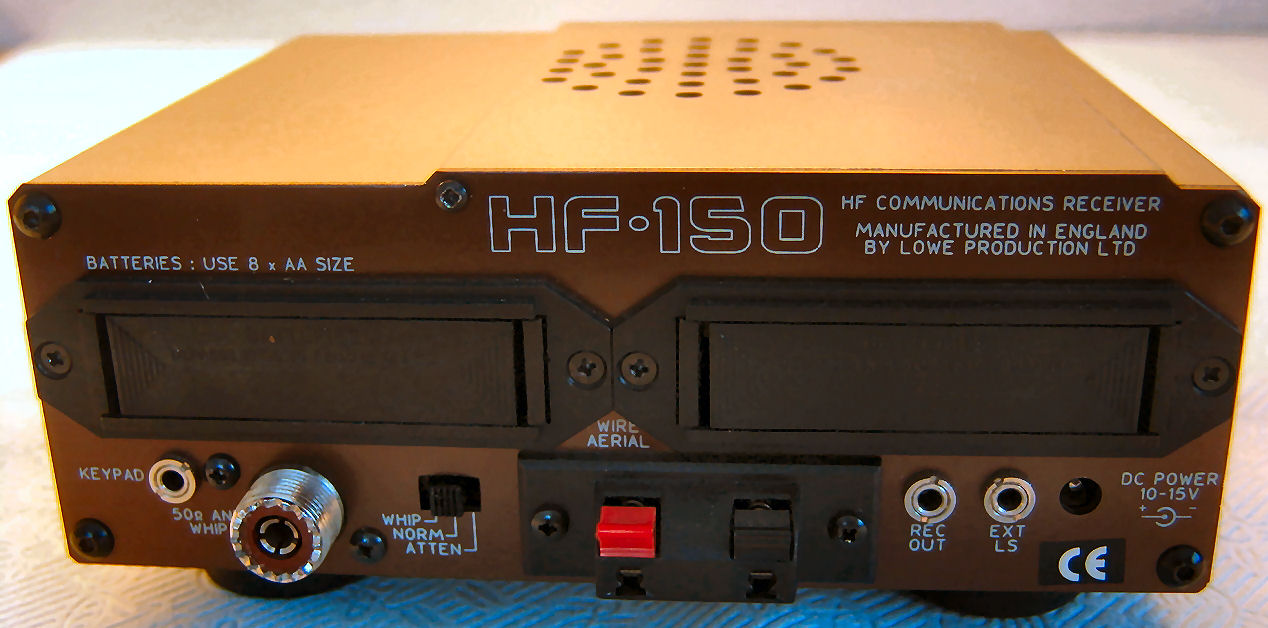

Aerial Input: 50 ohms, SO-239 / 600 ohms, press terminals or Hi-Z
Dimensions: 185(W) x 80(H) x 175(D) mm
Weight: 1.3 Kg (without batteries)
Manufactured: UK, 1992-1999
Integrated Accessories: AP-150 Amplifier/Filter/External Speaker.
SP-150 External Speaker.
PR-150 Antenna Preselector.

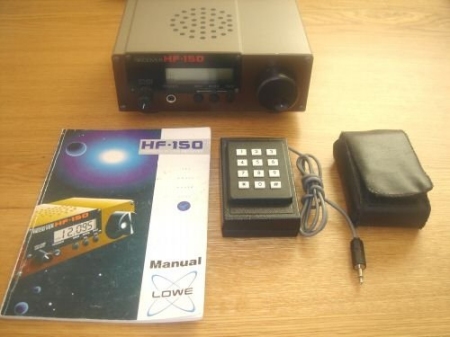

Related Documents: Owner's Manual (2.73 MB)
Technical Manual (9.81 MB)
Schematics (378 Kb)

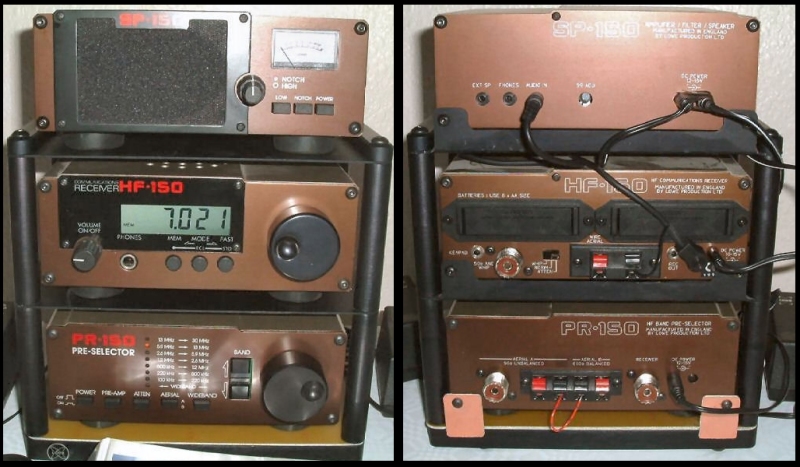

Lowe 150 Rack System:
