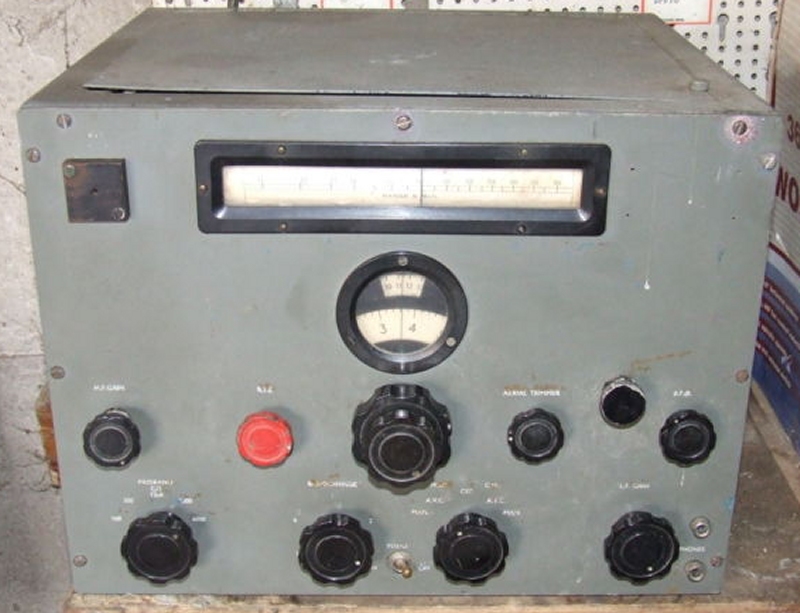

Marconi CR100/4
| Type: |
HF Receiver |
| Frequency Range: |
0.06-0.42 / 0.5-30 MHz in six bands |
| Modes: |
AM/CW |
| Receiver System: |
Single conversion superheterodyne
IF: 465 KHz |
| Sensitivity: |
CW below 11 MHz: 1-2 uV (20 dB S/N)
CW above 11 MHz: 1.5-4 uV (20 dB S/N) |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
85 W @ 250 VAC |
| Impedance: |
100 ohms Balanced or Unbalanced. Hi-Z |
| Dimensions (W*H*D): |
16 x 12.25 x 16.5" |
| Weight: |
82 Lbs |
| Manufactured: |
19xx-19xx |
| Other: |
User Manual (10.6 MB) |
| Related Documents: |
|
|
