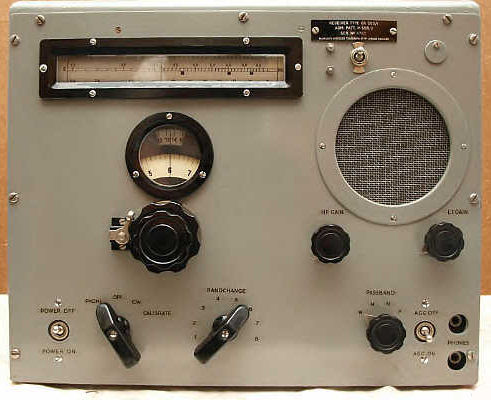

Marconi CR300
| Type: |
HF Receiver |
| Frequency Range: |
Band1: 0.15-0.85 MHz
Band2: 0.85-0.21 MHz
Band3: 0.21-0.55 MHz
Band4: 0.375-1.00 MHz
Band5: 1.00-2.60 MHz
Band6: 2.6-6.8 MHz
Band7: 6.8-17.0 MHz
Band8: 15.0-25.0 MHz |
| Modes: |
AM/CW |
| Receiver System: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
85 W @ 250 VAC |
| Impedance: |
100 ohms balanced or unbalanced. Hi-Z |
| Dimensions (W*H*D): |
16 x 12.25 x 16.5" |
| Weight: |
82 Lbs |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (2.31 MB) |
|
