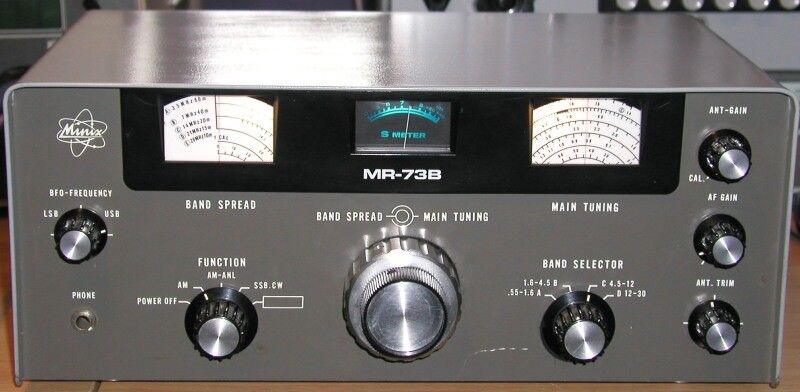

Minix MR-73B
| Type: |
HF Receiver |
| Frequency Range: |
0.55-30 MHz in four bands |
| Mode: |
AM/SSB/CW |
| Sensitivity: |
AM: 1 uV (10 dB S/N)
SSB: 0.3 uV (10 dB S/N) |
| Selectivity: |
4 KHz, shape factor <2 |
| Image rejection: |
Better than 35 dB |
| Voltage: |
12 VDC or Mains |
| Current Drain: |
Max ? mA |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
360*160*220 mm |
| Weight: |
6 Kg |
| Manufactured: |
Japan, 1976-197x |
| Other: |
Noise limiter, BFO, 3500 KHz XTAL
for adjustment to the amateur bands. |
