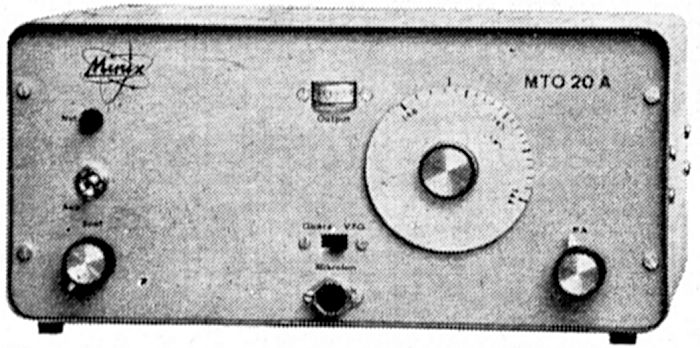

Minix MTO-20A
| Type: |
VHF Transmitter |
| Frequency Range: |
144-146 MHz |
| Mode: |
AM |
| RF Power output: |
Max 10 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
Better than 60 dB |
| Voltage: |
Mains |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
320*150*220 mm |
| Weight: |
6 Kg |
| Manufactured: |
Japan, 1968-19xx |
| Other: |
Space i provided for RX unit.
QQE03/12 final
New price 1968 in West Germany: DM 525.- |
