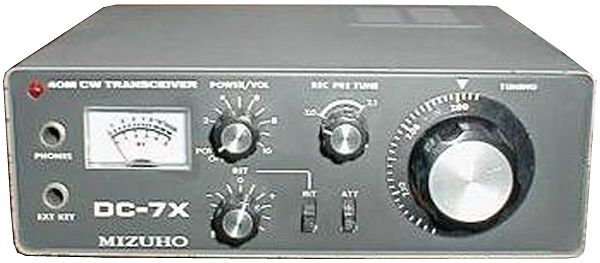

Mizuho DC-7X
| Type: |
Transceiver |
| Frequency Range: |
7-7.125 MHz |
| Mode: |
CW |
| RF Power output: |
2 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.5 VDC |
| Current Drain: |
RX: 55 mA
TX: Max 550 mA |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
202*65*173 mm |
| Weight: |
1.9 Kg |
| Manufactured: |
Japan, 1975-1980 |
| Other: |
|
| Related Documents: |
|
|
