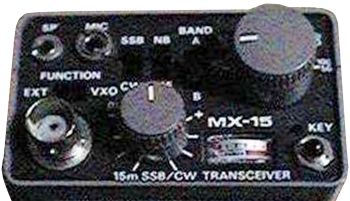

| Type: | Handheld Transceiver |
| Frequency Range: | 21-21.45 MHz (50 KHz per XTAL) |
| Mode: | SSB/CW |
| RF Power output: | 300 mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 9.5 VDC |
| Current Drain: | RX: 40 mA, TX: Max 200 mA |
| Aerial Input: | 50 ohms, BNC |
| Dimensions (W*H*D): | 66*142*39 mm |
| Weight: | 645 gr (batteries included) |
| Manufactured: | Japan, 1982-xxxx |
| Other: | VXO. Max 2 XTALS |
