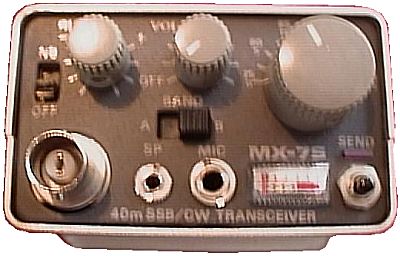

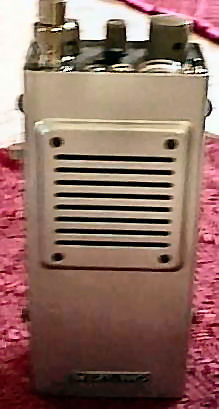

Mizuho MX-7S
| Type: |
Handheld Transceiver |
| Frequency Range: |
7-7.3 m (25 KHz per XTAL) |
| Mode: |
SSB/CW |
| RF Power output: |
Max 2 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
9.5 VDC |
| Current Drain: |
RX: 68 mA, TX: Max 600 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
66*142*39 mm |
| Weight: |
645 gr (batteries included) |
| Manufactured: |
Japan, 1983-2002 |
| Other: |
VXO. Max 2 XTALS |
| Related Documents: |
|
 |
