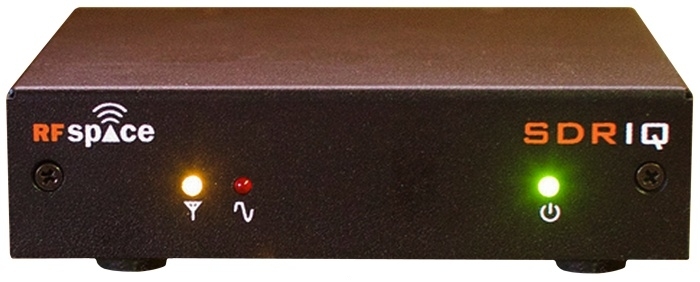

RFSPACE SDR-IQ
| Type: |
HF/VHF SDR Receiver |
| Frequency Range: |
0.0005-30 MHz |
| Modes: |
AM/AM-Sync/FM/WFM/SSB/CW/DRM |
| Receiver System: |
N/A |
| Sensitivity: |
N/A |
| Selectivity: |
Software Defined |
| Image Rejection: |
N/A |
| Output IQ Sample Rate: |
Max: 196 kHz |
| Output IQ Bandwidth: |
Max: 190 kHz |
| Voltage: |
5 VDC (Via USB Port) |
| Current Drain: |
Max 425 mA |
| Impedance: |
50 ohms, BNC |
| Dimensions (W*H*D): |
95 x 32 x 95 mm |
| Weight: |
? Kg |
| Manufactured: |
USA, 20xx-201x |
| Other: |
RF Preselection Filters for great IMD performance.
RS-232C for external radio control. USB.
Suitable software: SpectraVue, SDR-Radio and CuteSDR
New Price: $525 (USA 2012) |
| Related Documents: |
User Guide (111 kb) |
|
