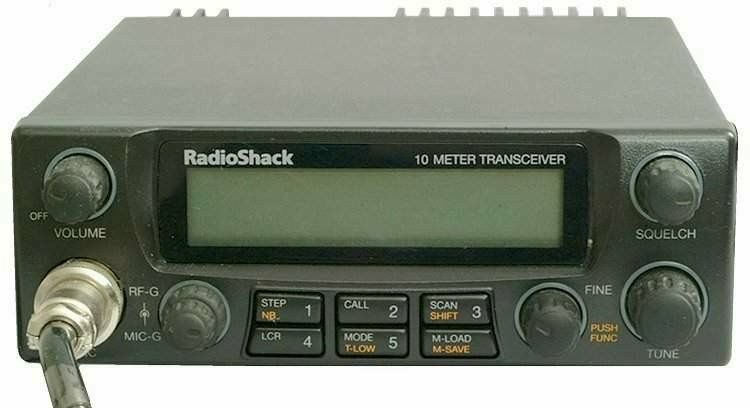

Radioshack HTX-10 {USA Catalog Number: 19-1110}*
| Type: |
Amateur HF transceiver |
| Frequency Range: |
28-29.7 MHz (25.150-29.7 after modification)
(1 / 10 / 100 KHz steps) |
| Modes: |
AM/FM/SSB |
| RF Power output: |
AM: 7 W
FM/SSB: 25 W |
| Sensitivity: |
0.5 uV (10 dB S/N) |
| Selectivity: |
N/A |
| Image rejection: |
>70 dB |
| Voltage: |
12-16 VDC |
| Current Drain: |
RX: ? A
TX: 3-5 A |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
154*52*248 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
199x-200x |
| Other: |
Repeater offset (Shift) |
| Related Documents: |
Owner's Manual (2.04 MB) |
 |
