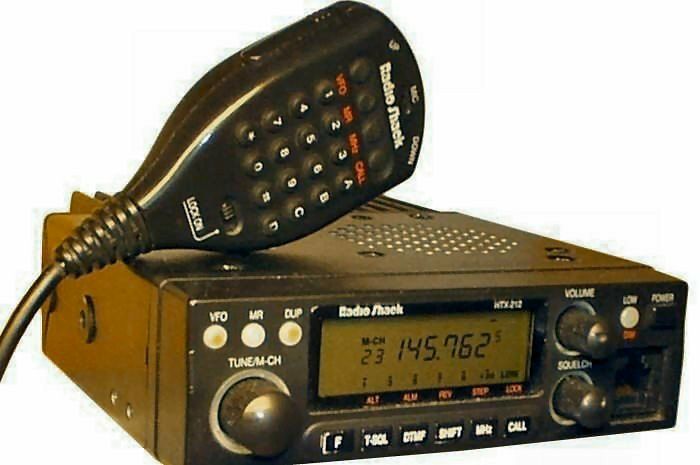

Radio Shack HTX-212 {USA Catalog Number: 19-1125}*

| Type: |
Amateur VHF/UHF transceiver |
| Frequency Range: |
TX: 144-148 MHz
RX: 136-174 MHz
(5/10/12.5/20/25/50/100 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 45 W
Lo: 10 W |
| Sensitivity: |
0.25 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: 3.7-9 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
142 x 42 x 160 mm |
| Weight: |
? gr |
| Manufactured: |
19xx-19xx |
| Other: |
CTCSS and DTMF |
| Related Documents: |
Owner's Manual (340 kb)
Service Manual (2.96 MB)
|
|
