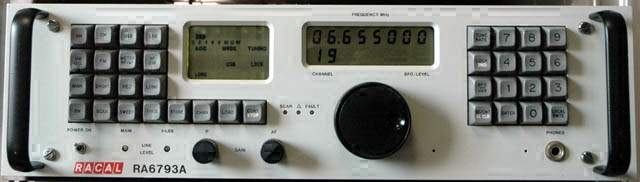

Racal RA 6793A

Type: HF Receiver
Frequency Range: 0.5-30 MHz
Modes: AM/LSB/USB/CW/FM
Voltage: Mains
Current Drain: ?
Aerial Input: 50 ohms
Dimensions (W*H*D): 19 x 5.25 x 18.5"
Weight: 32 Lbs
Manufactured: USA, 1991-1998
Other: 100 Memories
Related Documents: Technical Manual (19.1 MB)

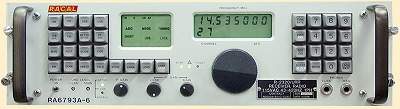

Military version of RA6793A is R-2320/URR and has 2 phone Jacks. Different connectors for Power and Remote, has AF VR for ISB and phone.
