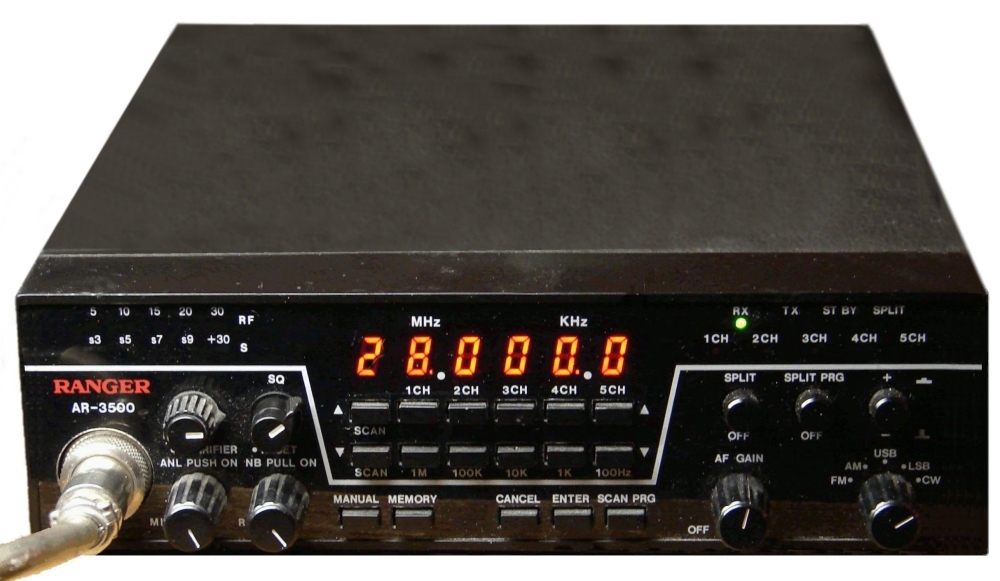

Ranger AR-3500
| Type: |
Amateur Transceiver |
| Frequency Range: |
28-30 MHz |
| Mode: |
AM/FM/SSB/CW |
| RF Power output: |
30 W (PEP) or 125 W (PEP) |
| Sensitivity: |
SSB/CW: 0.15 uV (10 dB S/N) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
N/A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
N/A |
| Weight: |
N/A |
| Manufactured: |
Japan, 198x-198x |
| Other: |
5 memories with scanning. Split operation for repeater access |
| Related Documents: |
|
|
