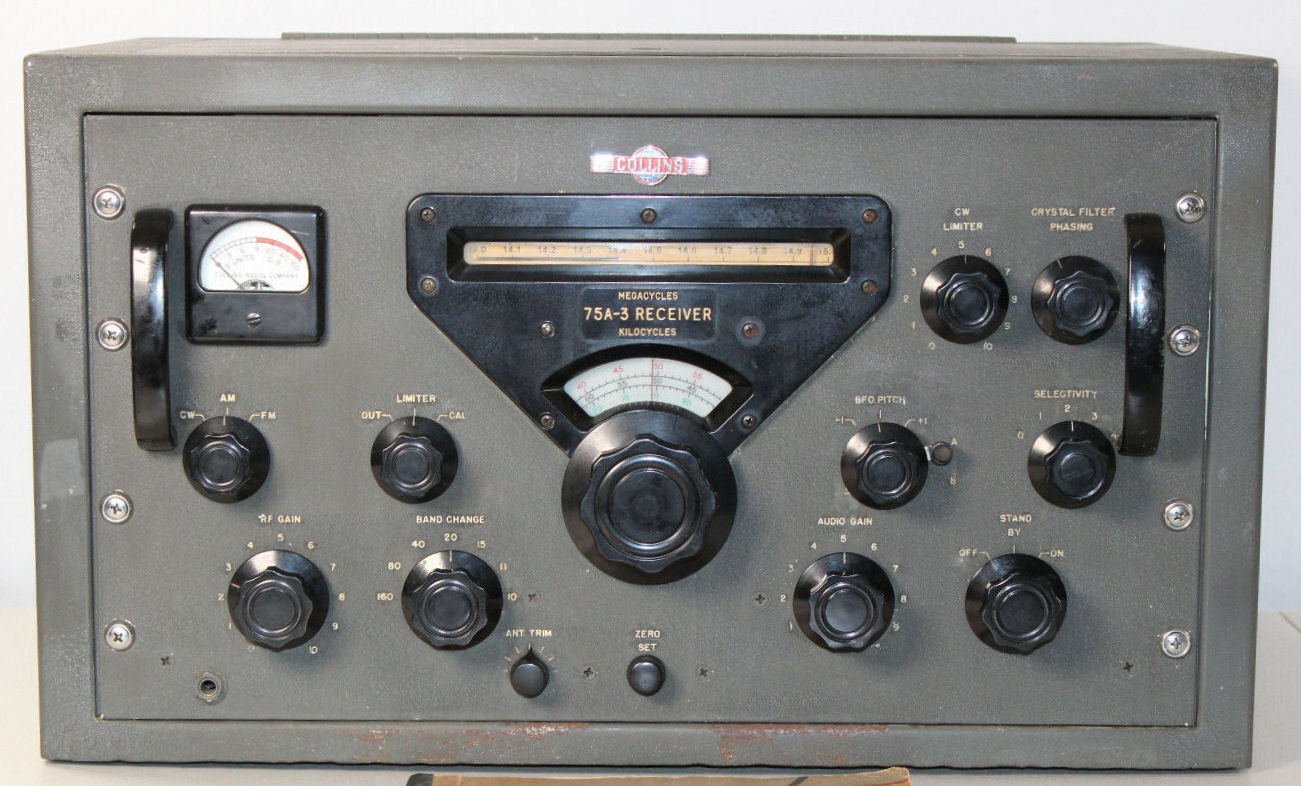

Collins 75A-3

Type: HF Receiver
Frequency Range: 10-80 m
Modes: AM/CW
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: Mains
Current Drain: ?
Aerial Input: 50 ohms
Dimensions (W*H*D): 536*317*333 mm
Weight: 22.7 Kg
Manufactured: USA, 1952-1954
Other: FM option. 3 KHz mechanical filter factory installed
New price 1952 in the US: $530.00
