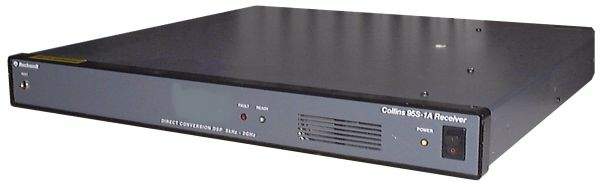

Collins 95S-1A

Type: HF Receiver
Frequency Range: 0.005-2000 MHz
Modes: AM/SSB/ISB/CW/FM/WFM
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 12 VDC or Mains
Current Drain: Max 30 W
Aerial Input: 50 ohms
Dimensions (W*H*D): 483 x 44 x 500 mm
Weight: 6 Kg
Manufactured: USA, 1995-2000
Other: "Zero IF" direct conversion DSP RX for computer control
