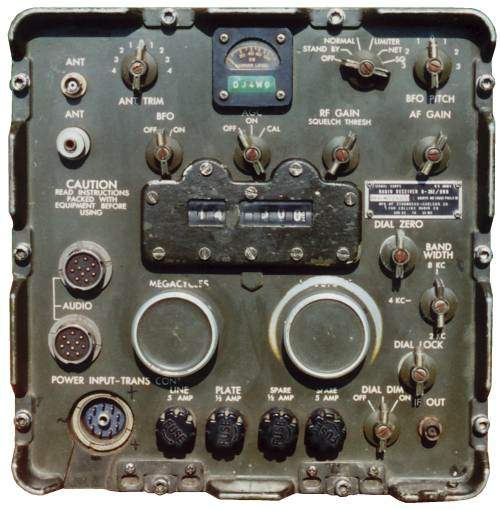

Collins R-392/URR

Type: HF Receiver
Frequency Range: 0.5-32 MHz
Modes: AM/CW
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 25-30 VDC
Current Drain: Max 3 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 283*293*352 mm
Weight: 23.7 Kg
Manufactured: USA, 195x-195x (mid-fifties)
Other:
Related Documents:
