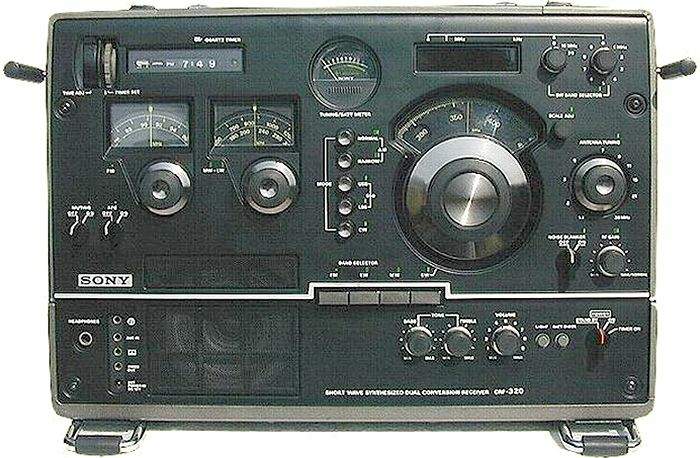

Sony CRF-320
| Type: |
HF Receiver |
| Frequency Range: |
0.15-30 / 87.5-108 MHz |
| Modes: |
AM/WFM/SSB/CW |
| Sensitivity: |
WFM: 1.8 uV (30 dB S/N) |
| Selectivity: |
AM: 16 KHz (-60 dB) |
| Image rejection: |
WFM: 60 dB @ 104 MHz
AM: 55 dB @1.605 MHz, 80 dB @ 360 KHz |
| Voltage: |
12 VDC external, 8 x R20 batteries or Mains |
| Current Drain: |
Max ? mA |
| Aerial Input: |
50-75 ohms external or telescopic whip |
| Dimensions (W*H*D): |
17.8 x 12.2 x 8.2" |
| Weight: |
29 lbs |
| Manufactured: |
Japan, 1976-1980 |
| Other: |
|
| Related Documents: |
|
|
