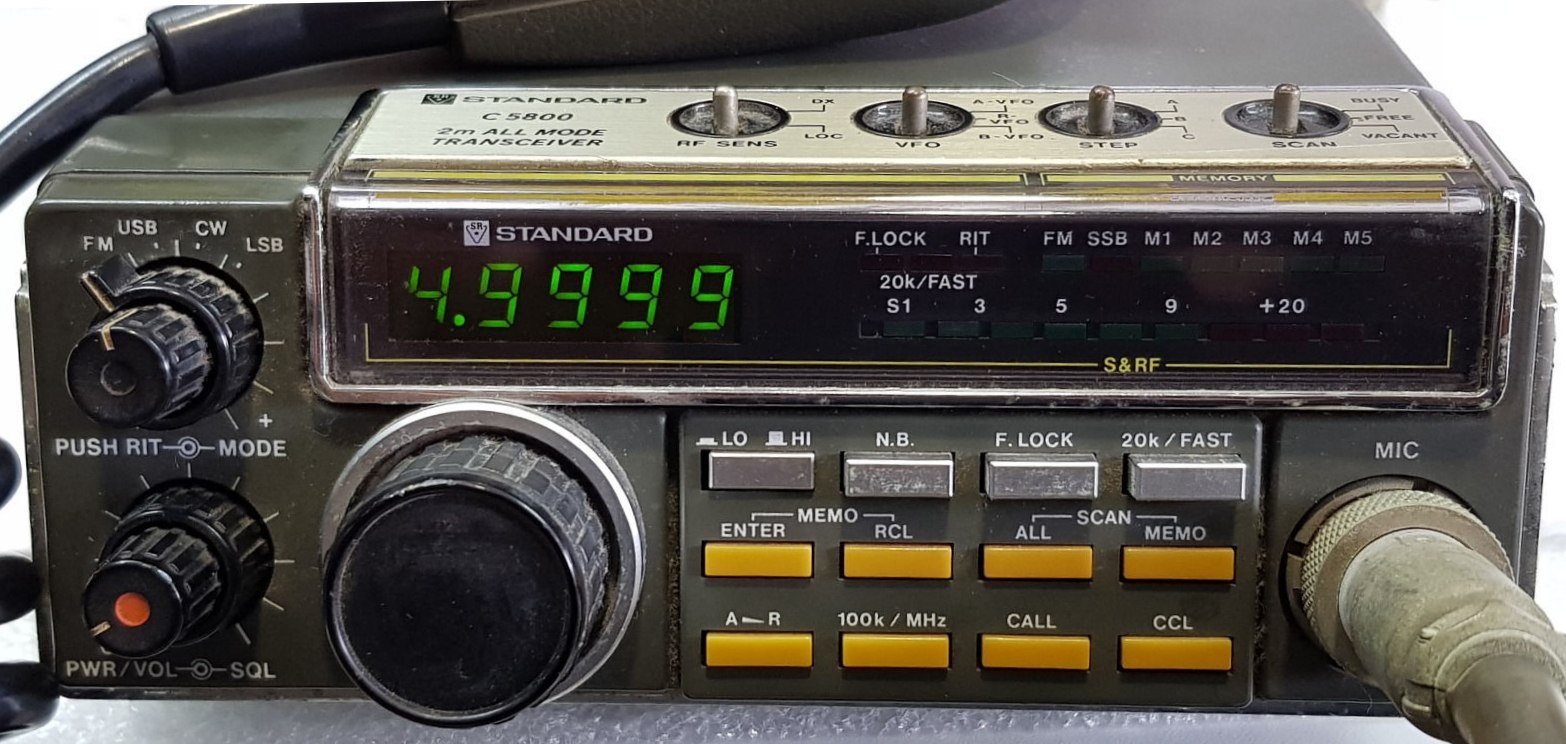

Standard C-5800
| Type: |
Amateur Transceiver |
| Frequency Range: |
144-148 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
Hi: 25 W
Lo: 1 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 450 mA
TX: Max 3.7 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
149 x 55 x 218 mm |
| Weight: |
1.9 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (54.8 MB)
Schematic (17 MB) |
 |
