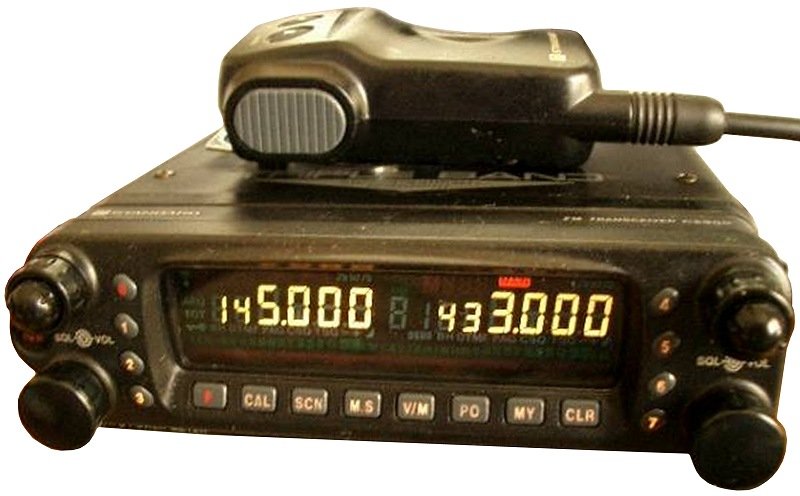

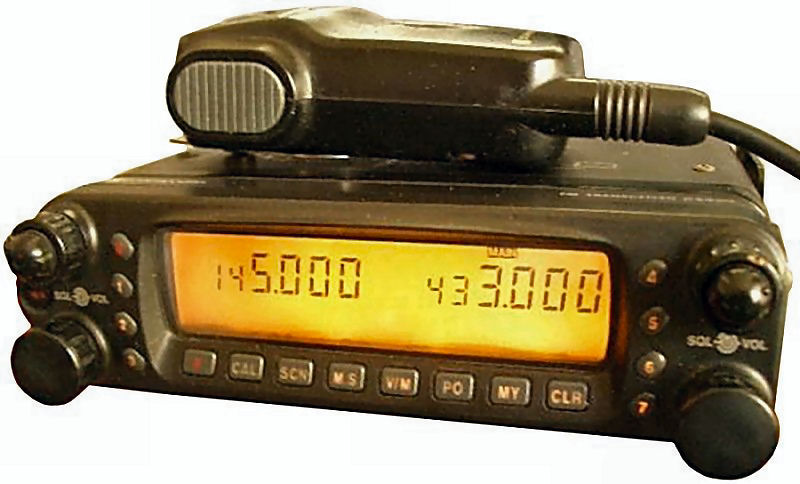

Standard C-5900D
| Type: |
Amateur Transceiver |
| Frequency Range: |
TX: 50-54 / 144-146 / 430-440 MHz
RX: 44-225 / 240-530 / 550-1020 MHz |
| Modes: |
TX: FM (15 KHz)
RX: AM/FM |
| RF Power output: |
Hi: 45/50/35 W
Mid: 10 / 10 / 10 W
Lo: 3 / 3 / 3 W |
| Memories: |
2*80 memories (expandable to 2*200) |
| Frequency Steps: |
5, 6.25, 10, 12.5, 15, 20, 25, 30, 50, 100 KHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*40*173 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
Japan, 1997-199x (Discontinued) |
| Other: |
9K6 packet ready. DTMF remote control
CTCSS/PL and DTMF. Twin RX |
