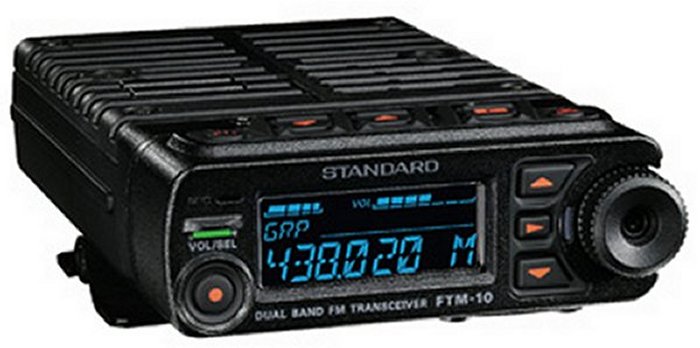

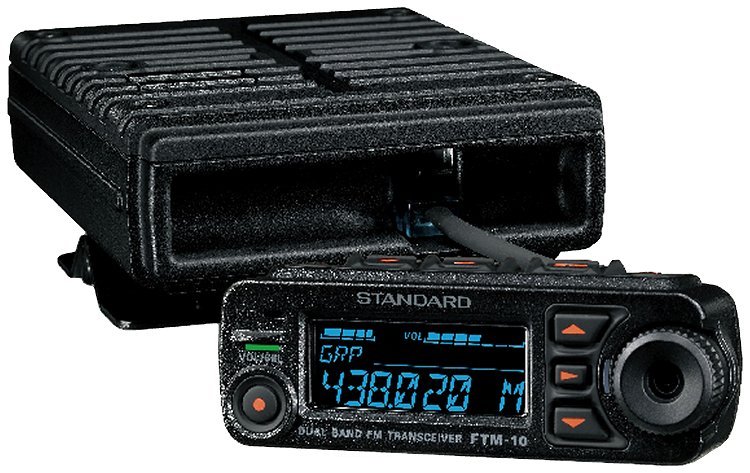

Standard FTM-10
| Type: |
Amateur VHF/UHF transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Asia)
RX: 0.5-1.8 / 76-108 / 108-222 / 300-1000 MHz
(5 / 6.25 / 8.22 / 9 / 10 / 12.5 / 15 / 20 / 25 /50 / 100 / 100 KHz steps) |
| Mode: |
TX: FM/NFM
RX: AM/FM/NFM/WFM Stereo |
| RF Power output: |
Hi: 20/20 W
Lo: 5/5 W |
| Voltage: |
11.7-15.8 VDC |
| Current Drain: |
RX: 0.5 A
TX: Max ? A |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
112*38*178 mm |
| Weight: |
1.3 Kg |
| Manufactured: |
2007-200x |
| Other: |
500 memories with alpha tags. Bluetooth. Clock/Calendar. WIRES-ready.
Line in. PA. DTMF, CTCSS & DCS. 9K6 packet ready. Twin RX |
