| Type: |

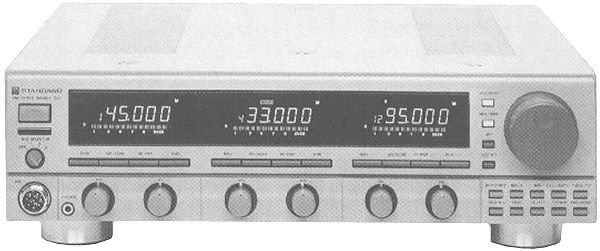

Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (10 m/50 W and 23 cm/10 W options)
(5/10/12.5/20/25/50/100 KHz and 1 MHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 50/40 W
Mid: 5/5 W
Lo: 1/1 W |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: 1.3 A
TX: Max 12 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
362*109*365 mm |
| Weight: |
11.5 Kg |
| Manufactured: |
1991-199x |
| Other: |
Remote control. 33 memories. CTCSS and DTMF options. |
