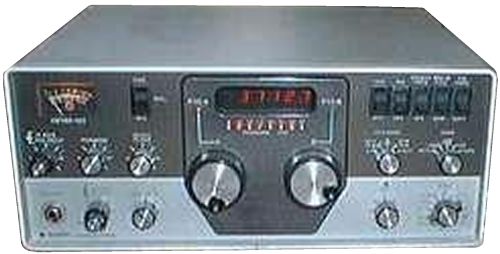

Cubic Astro 103
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m + WARC |
| Mode: |
SSB/CW/RTTY |
| RF Power output: |
100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12-14 VDC |
| Current Drain: |
RX: 1.8 A
TX: Max 19 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
362*162*337 mm |
| Weight: |
10.6 Kg |
| Manufactured: |
USA, 19xx-19xx |
| Other: |
Full QSK |
