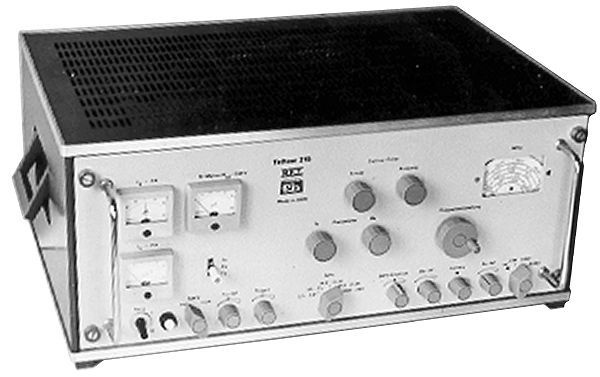

Teltow 215B
| Type: |
Transmitter |
| Frequency Range: |
10-80 m |
| Mode: |
AM/SSB/CW |
| RF Power output: |
20-60 W |
| Sensitivity: |
Better than 3 uV @ 10 dB S/N |
| Selectivity: |
N/A |
| Image rejection: |
Better than 55 dB |
| Voltage: |
Mains |
| Current Drain: |
RX: Max 1.2 A @ 220 VAC
TX: Max 2.5 A @ 220 VAC |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
542*222*348 mm |
| Weight: |
27 Kg |
| Manufactured: |
East Germany, 1975-19xx |
| Other: |
|
| Related Documents: |
|
|
