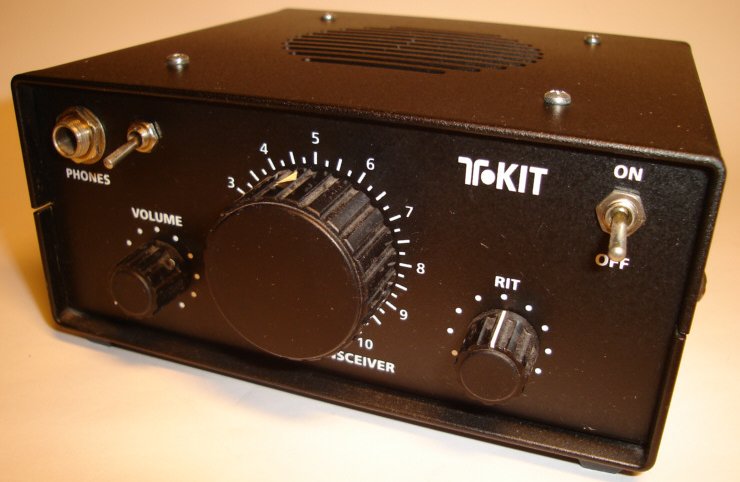

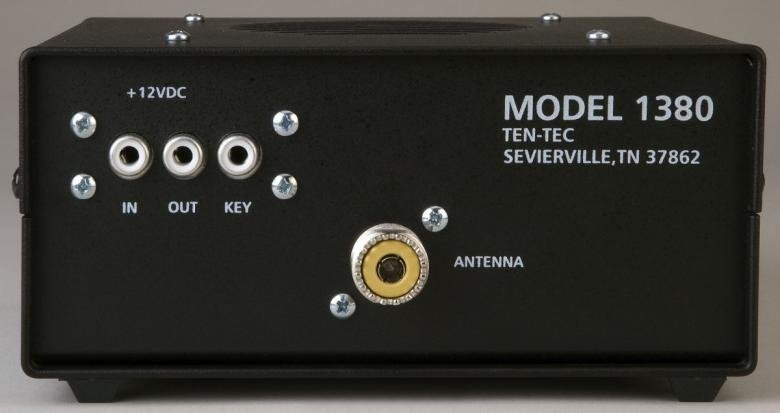

Ten-Tec 1380
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
80 m - VFO tuning of any 50 kHz segment of CW sub-band |
| Mode: |
CW |
| RF Power output: |
3 watts, no external adjustment |
| Voltage: |
12-14 Vdc |
| Current Drain: |
35 mA receive (no signal present), 80 mA receive (S-9 signal), 800 mA on transmit. |
| Aerial Input: |
50 ohm unbalanced, SO-239 connector |
| Dimensions : |
2.75(H) x 6(W) x 6(D) inches |
| Weight: |
2.25 lbs./1.02 kg |
| Manufactured: |
19xx-19xx |
| Other: |
Kit |
| Related Documents: |
|
|
