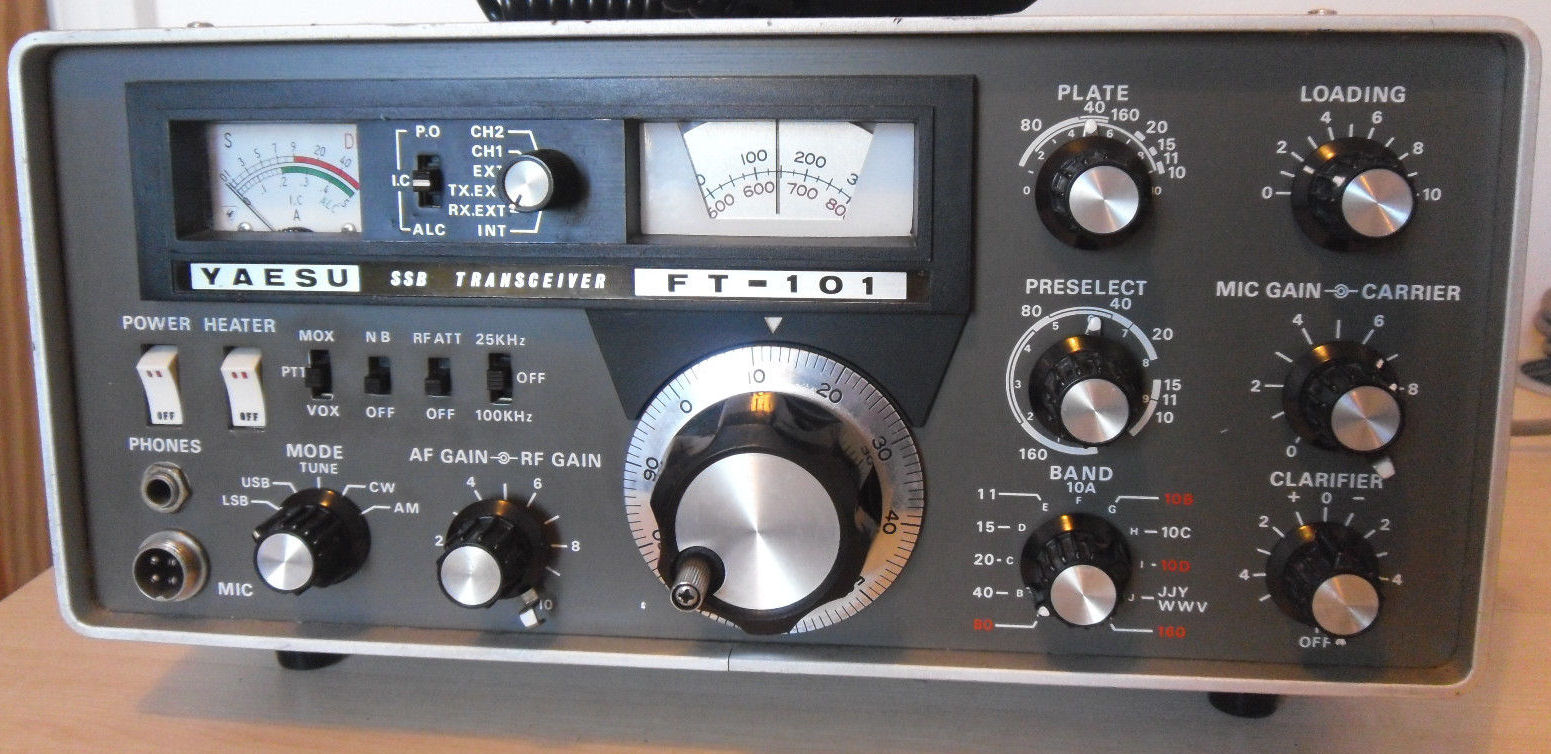

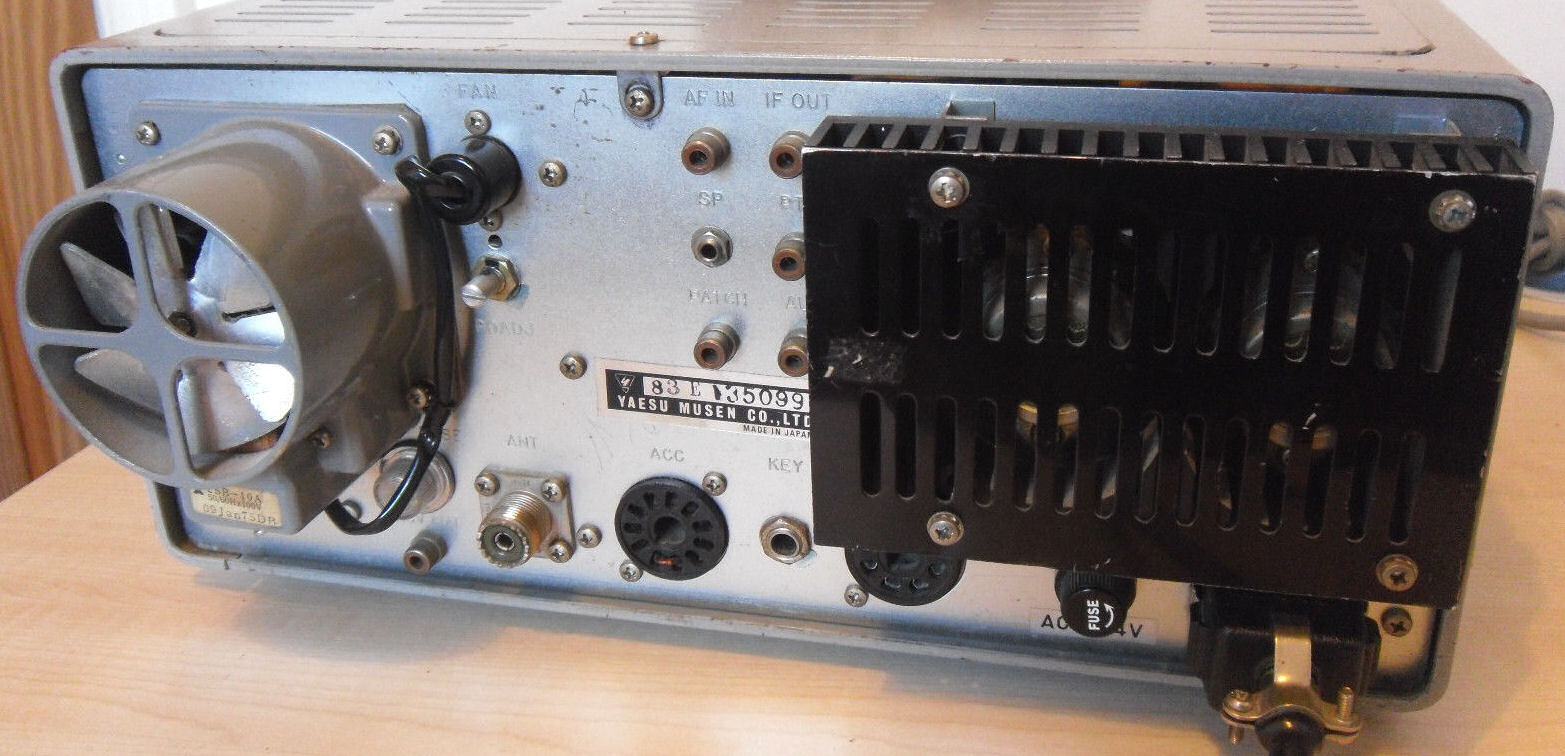

Yaesu FT-101
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m
26.9-27.5 MHz and 10-10.5 MHz (WWV) |
| Modes: |
AM/SSB/CW |
| RF Power output: |
SSB: 260 W (PEP input)
CW: 180 W (input)
AM: 80 W (input) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: 0.5 A
TX: Max 20 A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
13.5*6*11.5 inches |
| Weight: |
30 Lbs |
| Manufactured: |
Japan, 197x-197x |
| Other: |
|
| Related Documents: |
Service Manual (15.5 MB) |
 |
