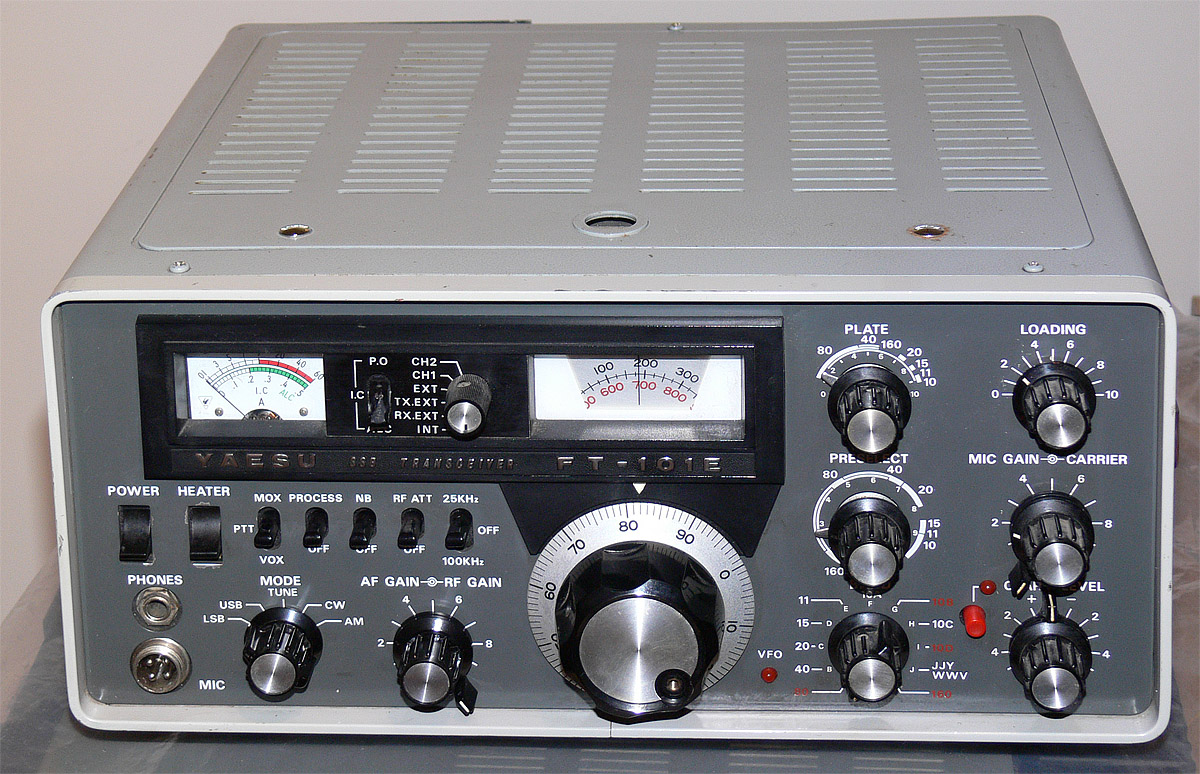

Yaesu FT-101E
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m |
| Modes: |
AM/SSB/CW |
| RF Power output: |
100 W |
| Sensitivity: |
0.3 uV (10 dB S/N) |
| Selectivity: |
AM/SSB/CW: 2.4 KHz (-6 dB), 4 KHz (-60 dB)
CW with optional filter: 600 Hz (-6 dB), 1.2 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
12 VDC or Mains |
| Current Drain: |
RX: 600 mA
TX: Max 21 A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
Japan, 197x-19xx |
| Other: |
|
| Related Documents: |
User Manual (3.82 MB)
Service Manual (15.5 MB) |
    |
