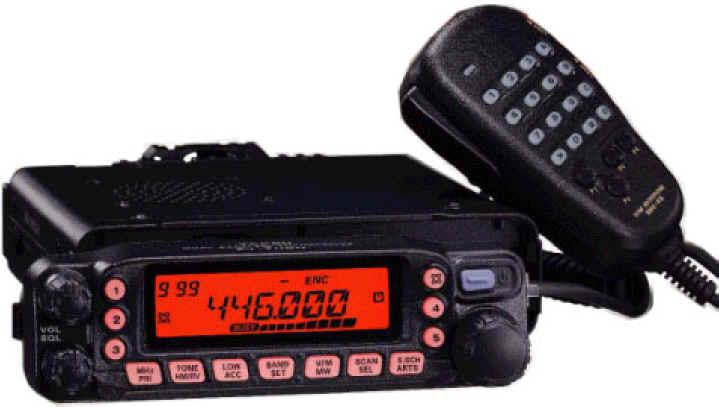

Yaesu FT-7800E
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 (148 Optional) / 430-450 MHz
RX: 108-999 Mhz (with gap) |
| Modes: |
F3E, F2D, F2A |
| RF Power output: |
Hi: 50/40 W
Mid1: 20/20 W
Mid2: 10/10 W
Lo: 5/5 W |
| Frequency Steps: |
5, 10, 12.5, 15, 20, 25, 50, 100 Khz |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.5 A
TX: Max 8.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140 x 41 x 168 mm |
| Weight: |
1 Kg |
| Manufactured: |
200x-200x |
| Other: |
Wires and 1200/9600 baud packet ready.
Detachable front panel. 1000 memories
New Price: £199.95 (2009) |
