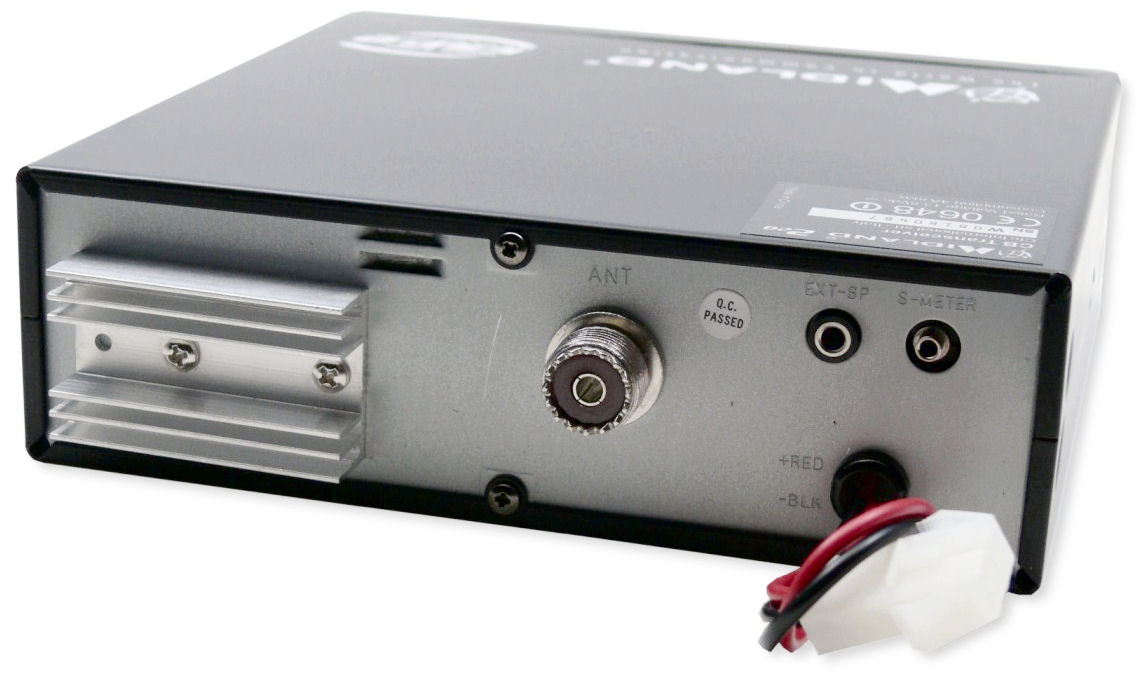

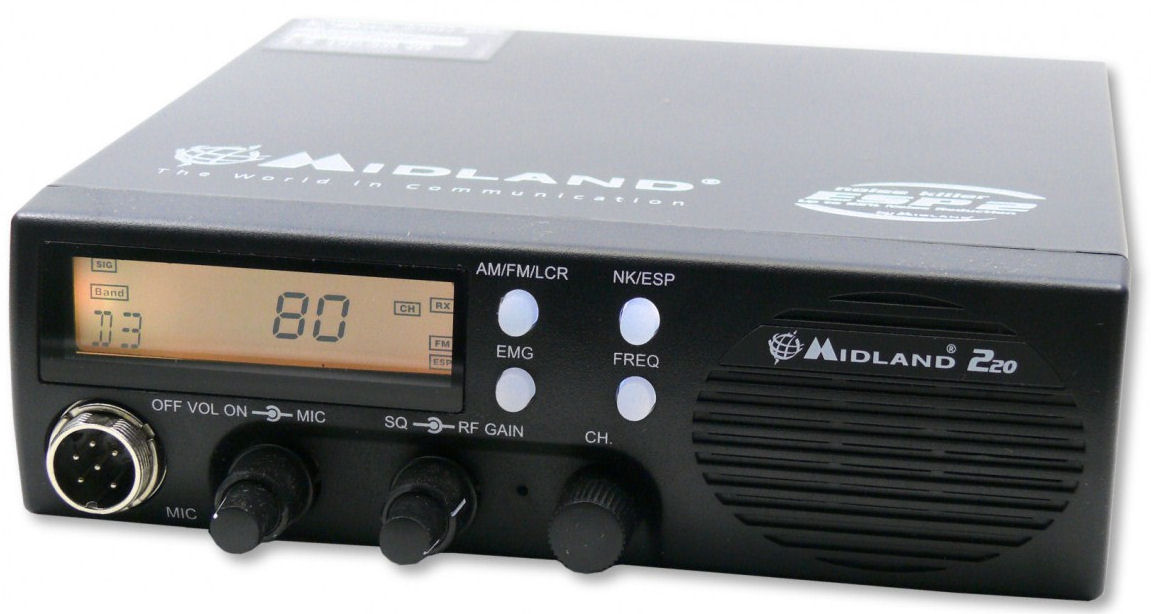

Midland 220

Type: Citizen Band Transceiver
Frequency Range: 26.965-27.405 MHz AM (RX/TX)
26.565-27.99125 MHz FM (RX/TX)
**** Covering all approved EU Frequency Bands25.565-27.405 Mhz
UK: 27.60125-27.99125 Mhz + CEPT: 26.965-27.405 Mhz
Channels: EC: 40 channels FM / 4 watt (CEPT) (Frequency Band allowed all over Europe)
EU: 40 channels FM / 4 watt, 40 channels AM / 1 watt (Europe)
E: 40 CH AM/FM 4 Watt (Spain)
F: 40 channels FM / 4 watt, 40 channels AM / 1 watt (France)
I: 40 CH AM/FM 4 Watt (Italy)
I2: 34 CH AM/FM 4 Watt (Italy)
D4: 80 channels FM / 4 watt, 40 channels AM / 4 watt (Germany)
PL: 40 channels FM / 4 watt, 40 channels AM / 4 watt (Poland)
Channels: 40/80
Modes: AM/FM
Frequency Control: PLL
Power Output: 4 W
Voltage: 13.8 VDC
Current Drain: RX: 200 mA (Standby)
TX: Max 1.1 A
Dimensions (W*H*D): 170 x 52 x 170 mm
Weight: 1.02 Kg
Manufactured: 198x-198x
Other:
Related Documents: User Manual (20.0 MB)
Sams Photofact:
FCC Data (ID):
