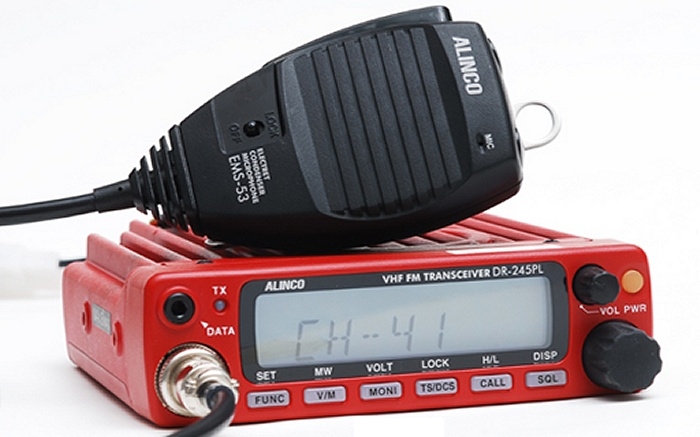

Alinco DR-245PL

Type: Citizen Band Transceiver
Frequency Range: 245.0000-245.9875 MHz
Channels: 80
Memories: 101
Frequency Steps: 12.5 KHz
Modes: FM
RF Power Output: Hi: 10 W
Mid: 5 W
Lo: 2.5 W
Receiver System: Double conversion superheterodyne
1st IF: 30.85 MHz
2nd IF: 455 KHz
Sensitivity: 0.2 uV (12 dB SINAD)
Selectivity: 70 dB (no reference)
Image Rejection: N/A
Voltage: 11.7-15.8 VDC
Current Drain: RX: Max 600 mA
TX: Max 5 A
Antenna Input: 50 ohms
Dimensions (W*H*D): 140 x 40 x 174 mm
Weight: 1.2 Kg
Manufactured: 20xx-20xx
Other: CTCSS/DCS
Related documents: N/A
