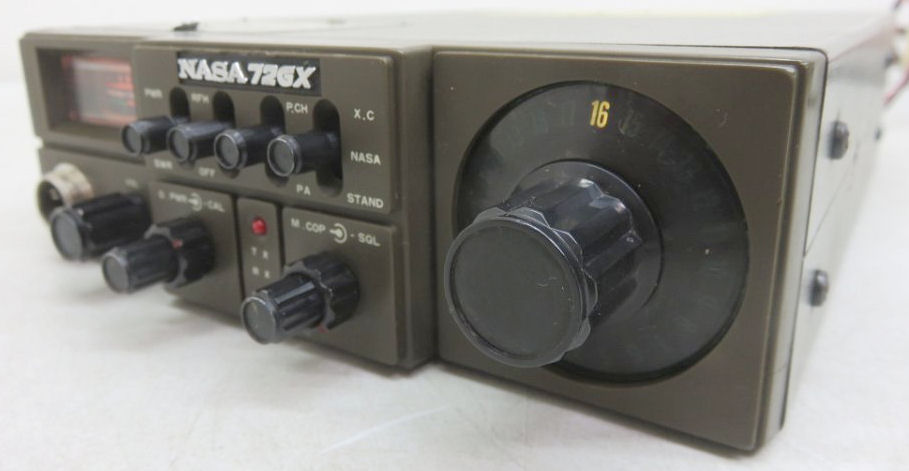

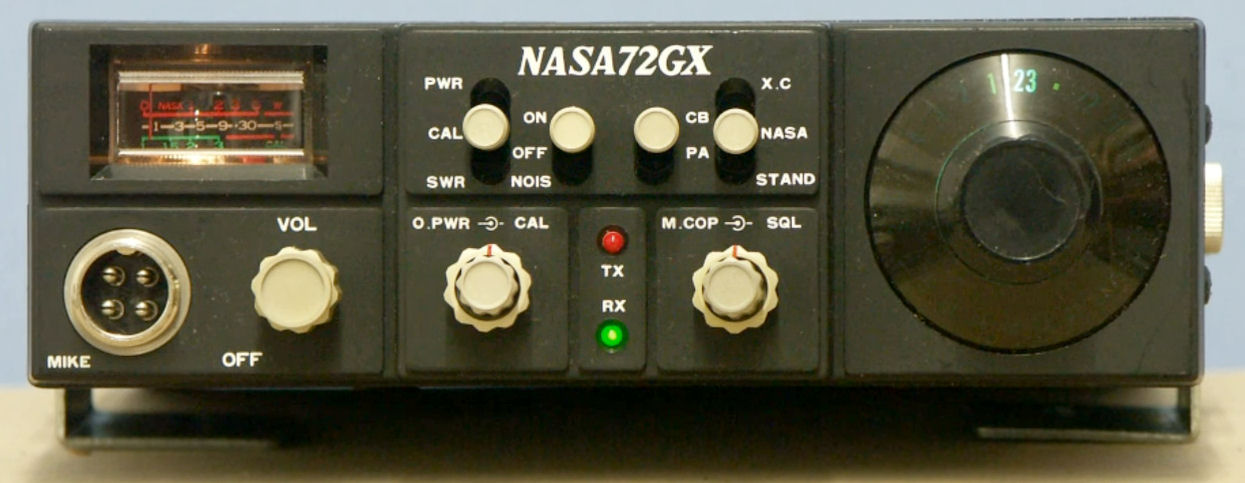

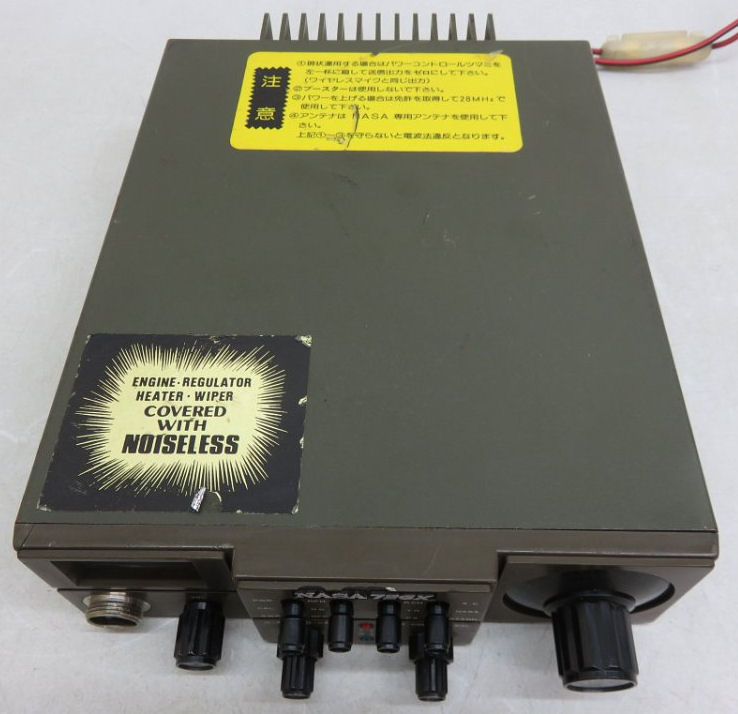

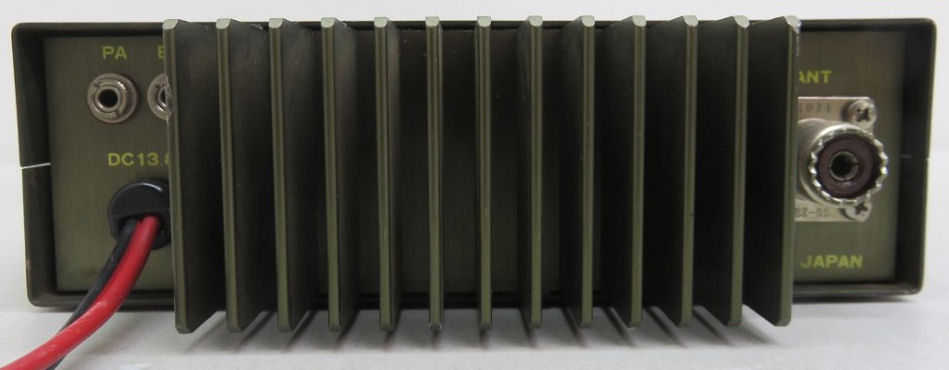

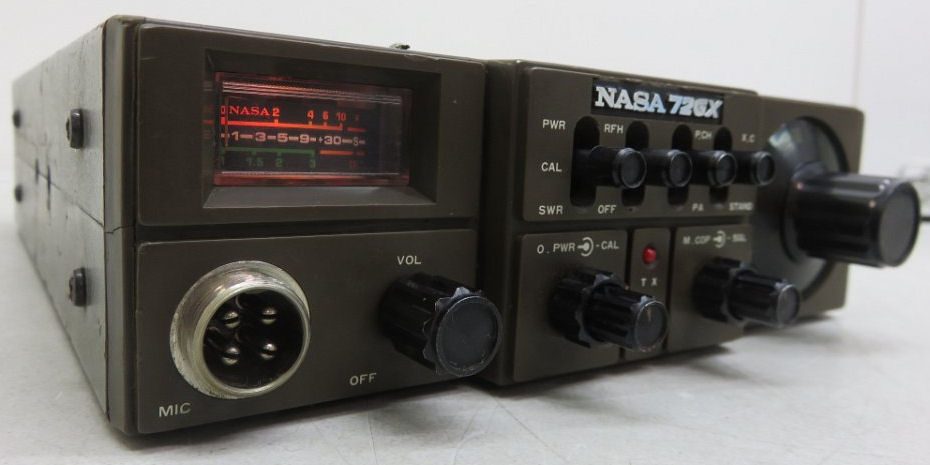

NASA 72GX
| Type: |
Citizen Band Transceiver |
| Frequency Range: |
26.965-27.255 MHz + 10m Band |
| Channels: |
69 (23ch x3) (23 US & 46 HAM channels AM) |
| Modes: |
AM |
| Frequency control: |
Xtal |
| Power output: |
5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12.5-13.8 VDC |
| Current Drain: |
RX: Max ?? mA
TX: Max ?? A |
| Dimensions (W*H*D): |
175 x 55 x 230 mm |
| Weight: |
?? Kg |
| Manufactured: |
Japan: 19xx-19xx
By: NASA Communication Co. Ltd. |
| Other: |
|
| Related Documents: |
|
 |
