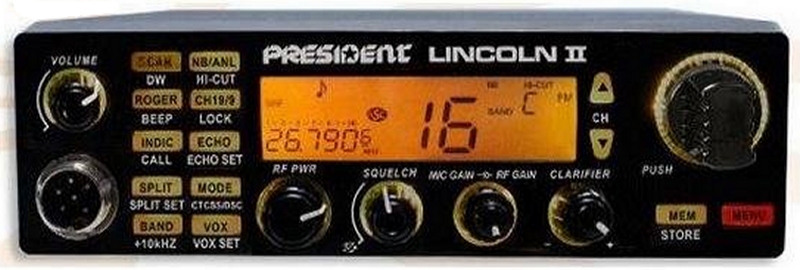

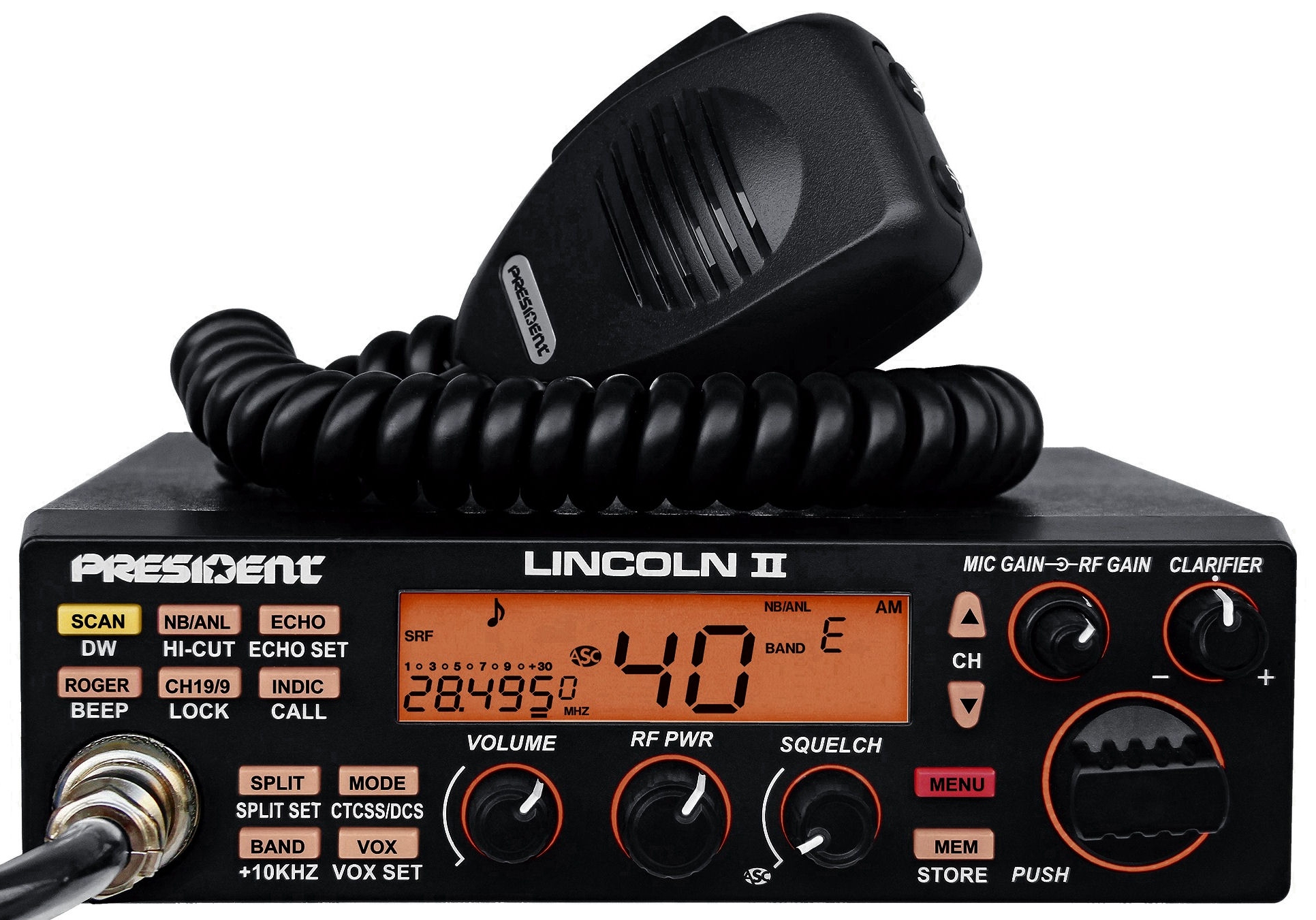

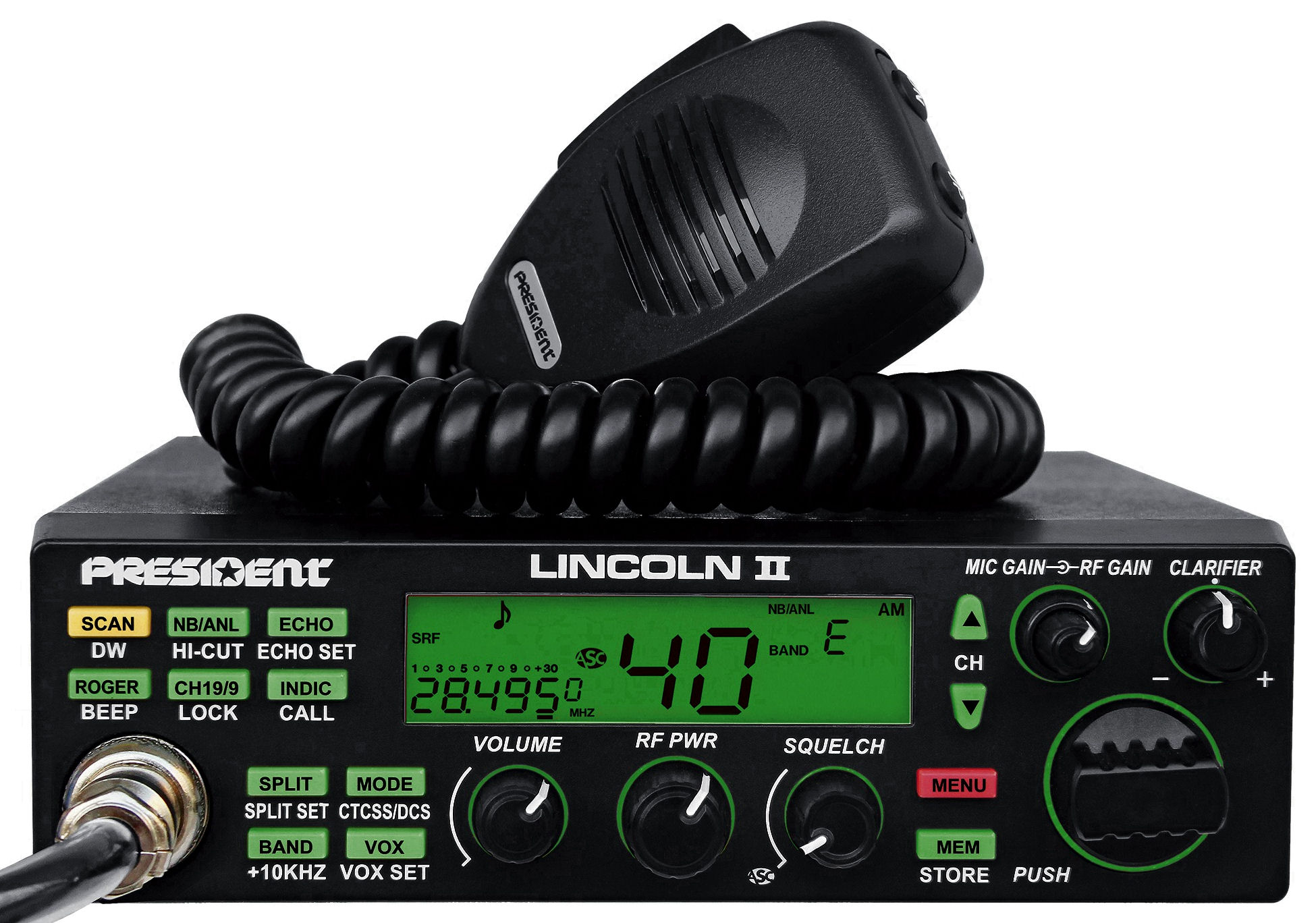

President Lincoln II
| Type: |
Citizen Band Transceiver |
| Frequency Range: |
28.000-29.700 MHz |
| Channels: |
? |
| Modes: |
AM/FM/LSB/USB/CW |
| Frequency Control: |
PLL |
| Power Output: |
AM/CW: 12 W
FM: 28 W
SSB: 31 W |
| Voltage: |
13.2 VDC |
| Current Drain: |
RX: Max 600 mA
TX: Max 6.0 A |
| Dimensions (W*H*D): |
170 x 52 x 250 mm |
| Weight: |
1.4 Kg |
| Manufactured: |
2013-20xx |
| Other: |
Dual watch, Tri-Colour Backlight
CTCSS (38 tones), DCS (104 codes)
Roger beep, Echo chamber, Scanning |
| Related Documents: |
User Manual (2.14 MB) |
|
