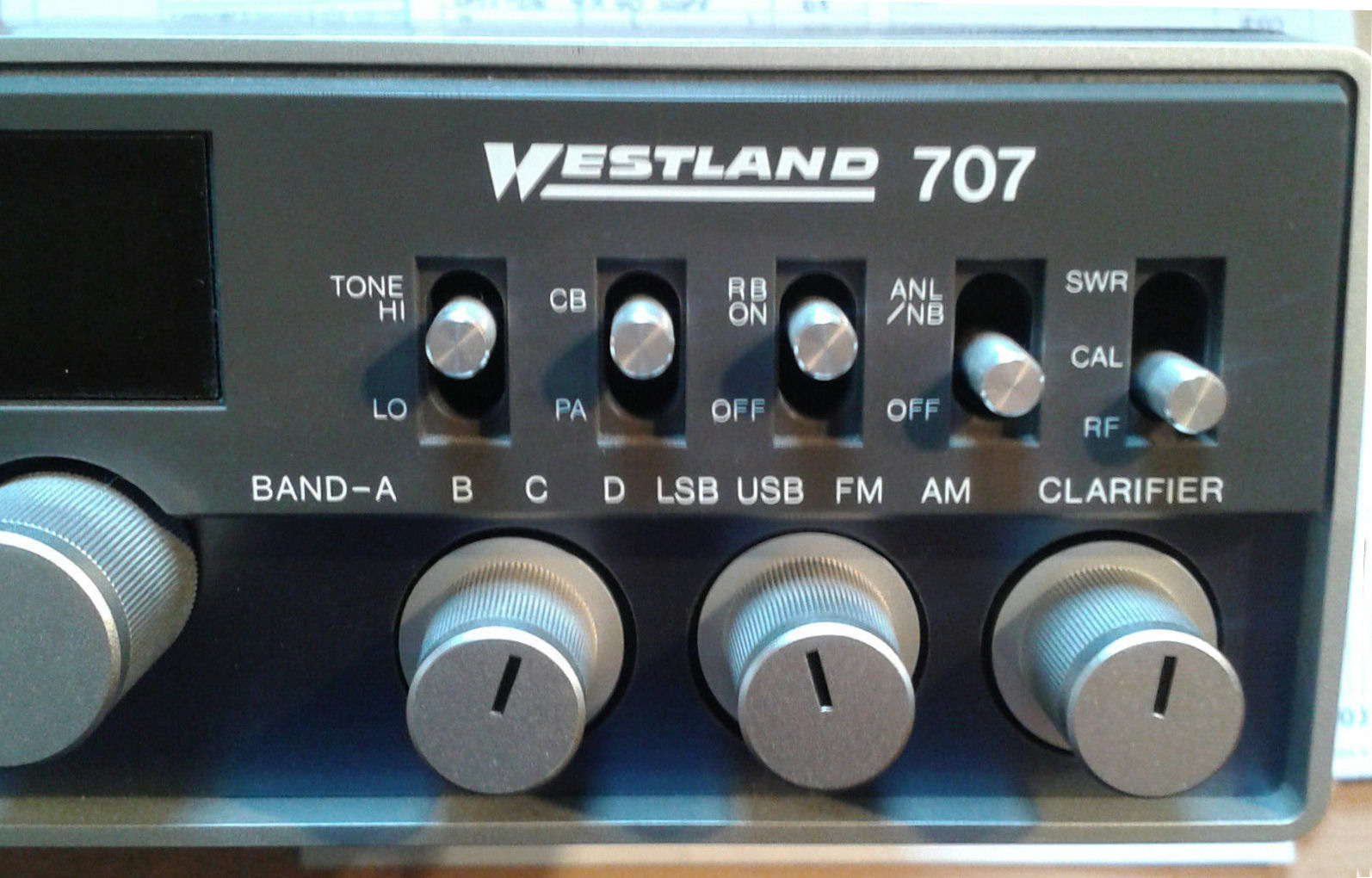

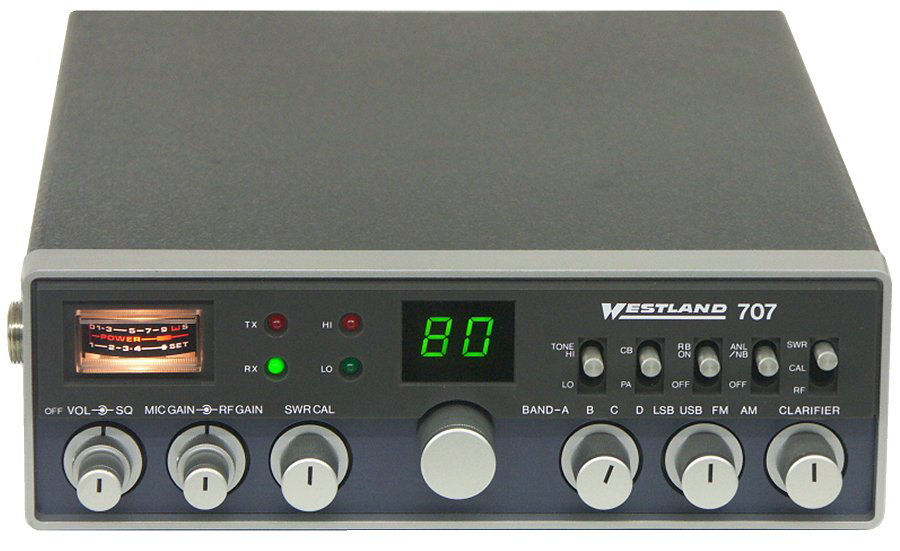

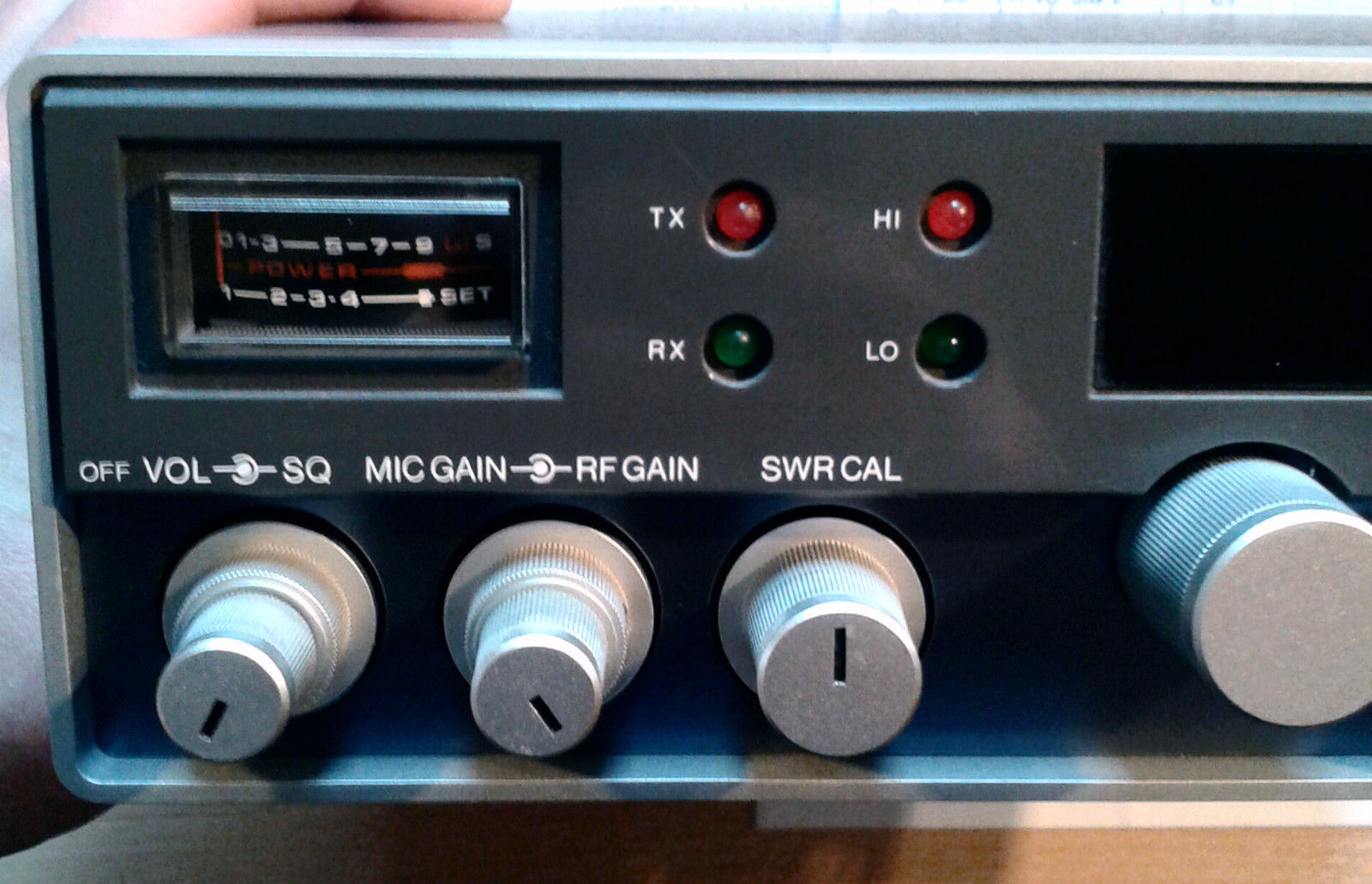

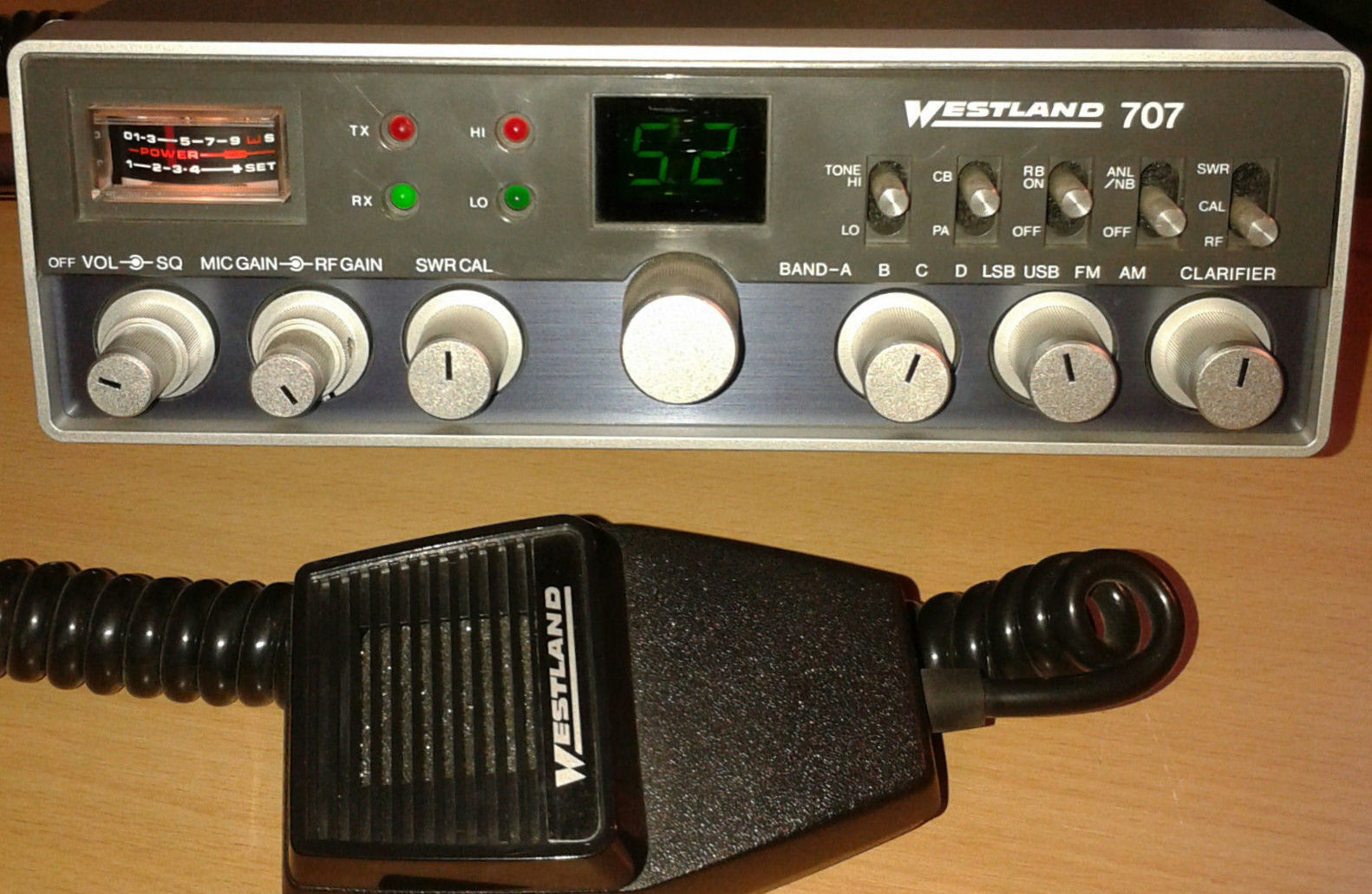

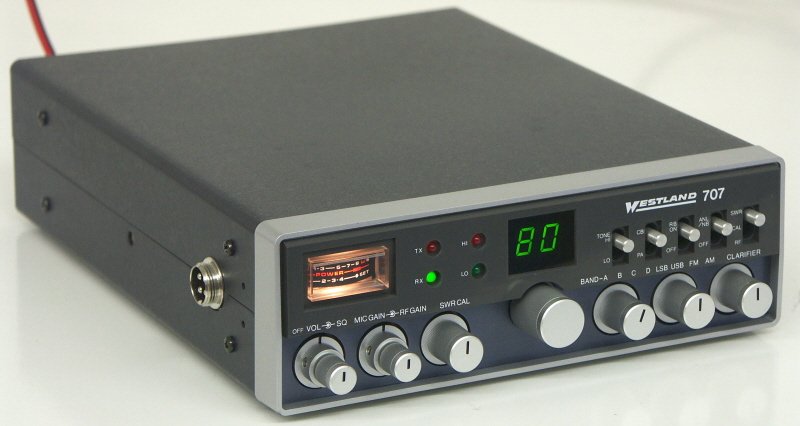

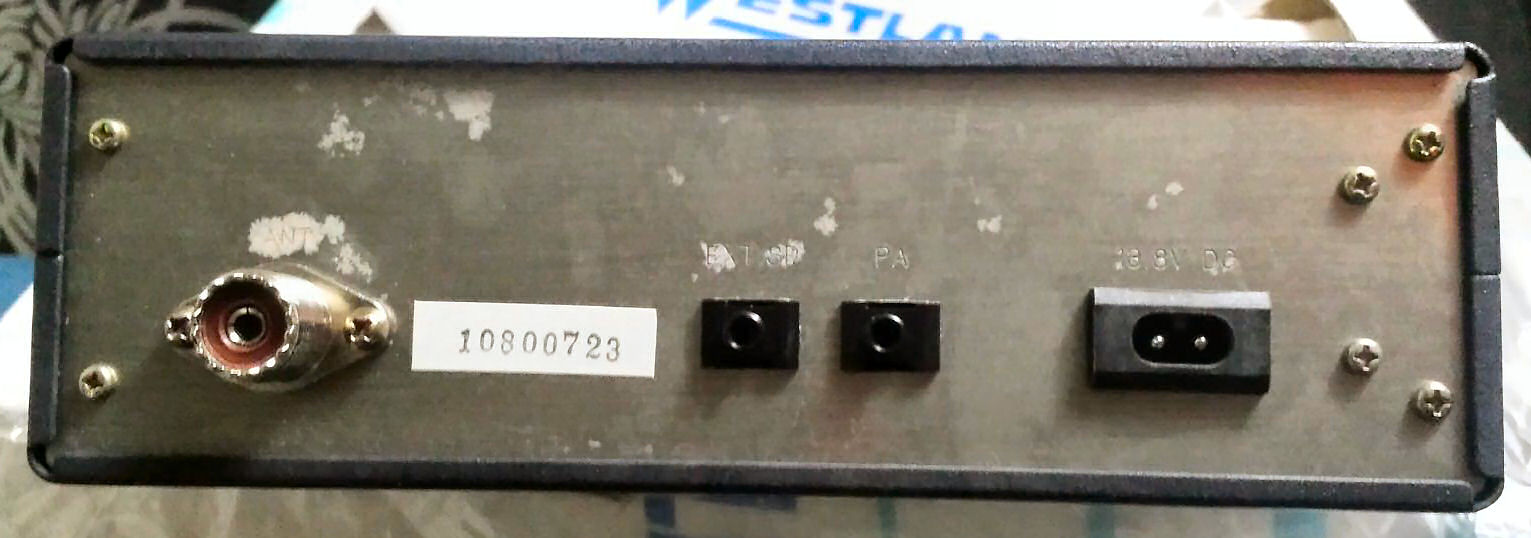

Westland 707
| Type: |
Citizen Band Transceiver |
| Frequency Range: |
26.515-28.305MHz |
| Channels: |
160 |
| Modes: |
AM/FM/SSB |
| Frequency Control: |
PLL (PLL02A) |
| Power Output: |
AM: 7.5 W
FM: 10 W
SSB:12 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.7 A
TX: Max 2.9 A |
| Dimensions (W*H*D): |
210*65*255 mm |
| Weight: |
2.15 Kg |
| Manufactured: |
1982-1984 (PCB by CYBERNET Enterp.Co Japan) |
| Other: |
Same As Lafayette AFS-640
Board: PTBM125A4X |
