| Type: |

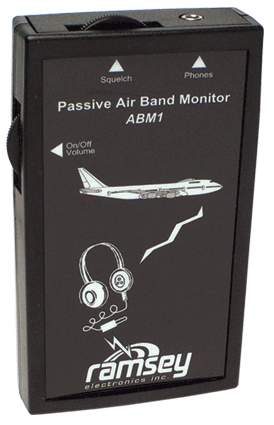

Passive Air Band Monitor |
| Frequency Range: |
118 to 136 MHz |
| Mode: |
AM |
| IF Frequencies: |
None |
| Receiver Sensitivity: |
Less than 2uV for detectable audio |
Antenna input jack
headphones: |
3.5mm Stereo jack |
| Audio output jack: |
3.5mm Stereo jack |
| Power supply requirements: |
9 Volt Battery |
| Current draw: |
50 mA Maximum 20 mA typical |
| Dimensions (Circuit Board): |
57.23 x 71.13 mm |
| Dimensions (Case): |
63.5 x 116.8 x 22.9 mm |
| Weight: |
113.4 gr (Completed with 9V Battery) |
| Manufactured: |
USA, 2007-20xx |
| Other: |
Monitors The Entire Aircraft Band...
WITHOUT ANY TUNING!

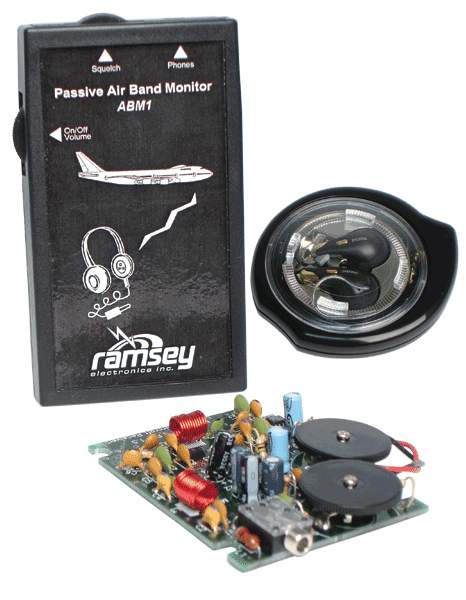

Comes in Kit form |
| Related Documents: |
User Manual (344 KB) |
