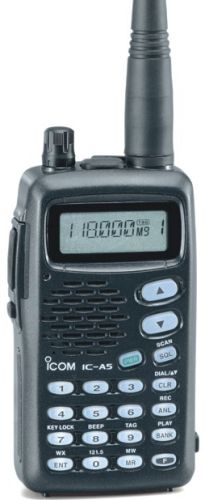

Icom IC-A5
| Type: |
Airband Transceiver |
| Frequency Range: |
TX/RX: 118-137 MHz
RX: 161.650-163.275 weather channels |
| Modes: |
AM
FM (WX only) |
Memories: |
200 |
| RF Power output: |
5 W |
| Voltage: |
9.6-12 VDC |
| Current Drain: |
RX: 70-500 mA
TX: Max 1.8 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
58*107*29 mm |
| Weight: |
340 gr |
| Manufactured: |
2002-200x |
| Other: |
VOR navigation. PC programmable.
One touch access to 121.5 MHz emergency channel |
| Related Documents: |
Instruction Manual (540 Kb) |
|
