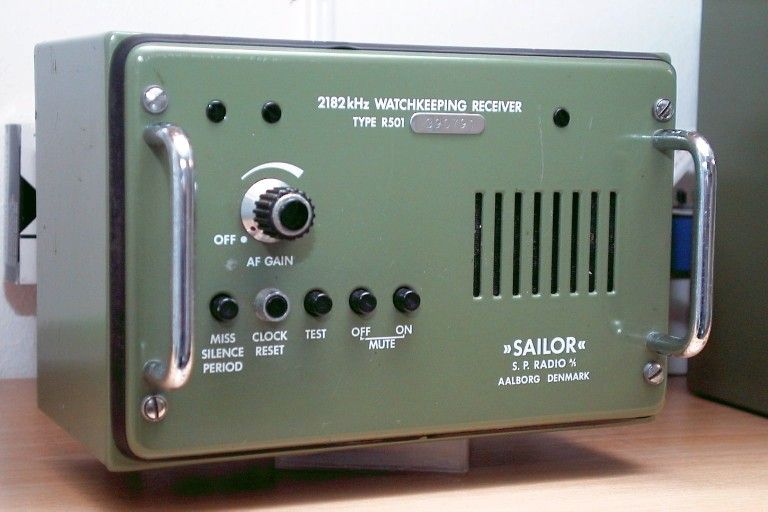

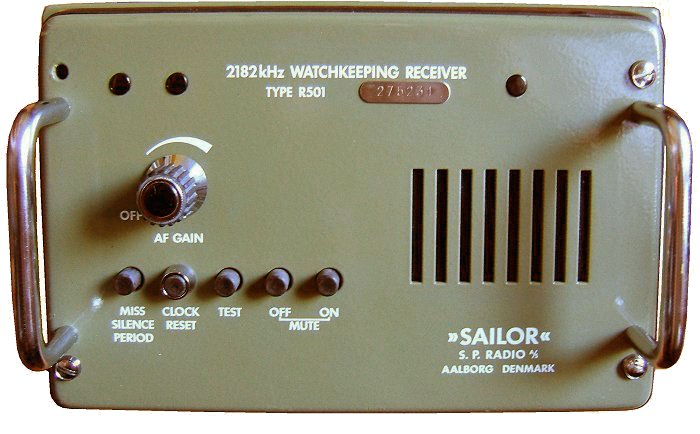

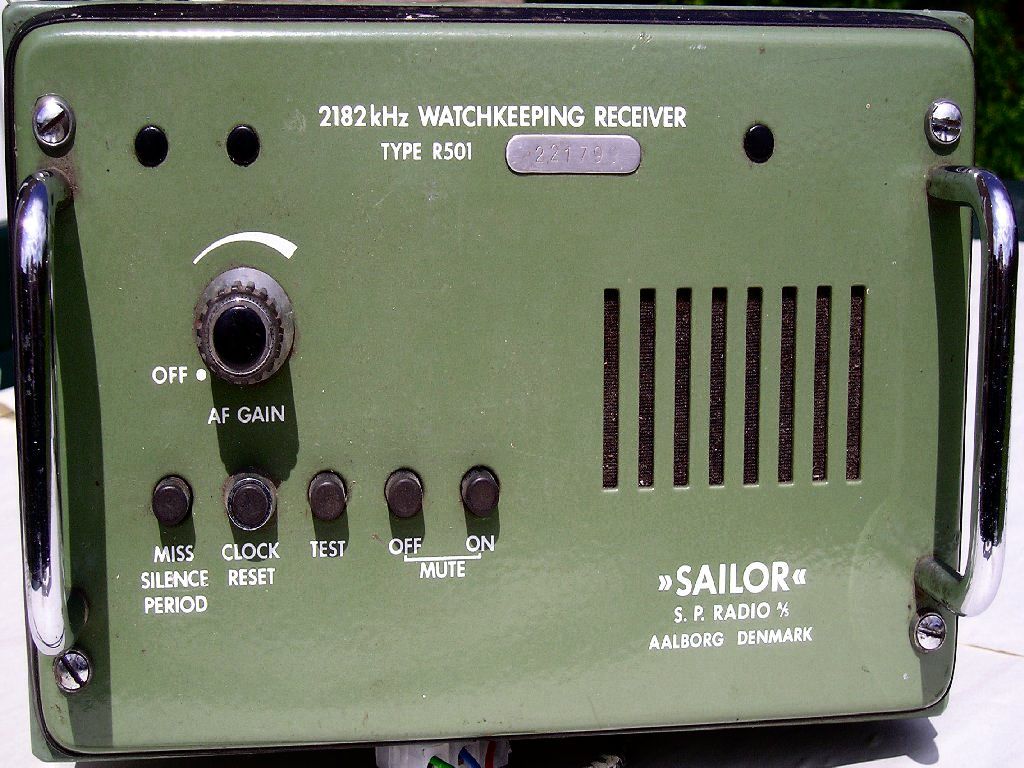

Sailor R501

Type: Marine HF Receiver
Frequency Range: 2.182 MHz (single channel)
Modes: AM
Sensitivity: Better than 1 uV
Selectivity: 20 KHz (-40 dB), 40 KHz (-50 dB)
Image rejection: N/A
Voltage: 24 VDC +/- 10% or Mains
Current Drain: 100-350 mA
Aerial Input: 50-75 ohms, SO-239
Dimensions (W*H*D): 230*150*162 mm
Weight: ? Kg
Manufactured: 19xx-19xx
Other:
Related Documents: User Manual (25.3 MB)
