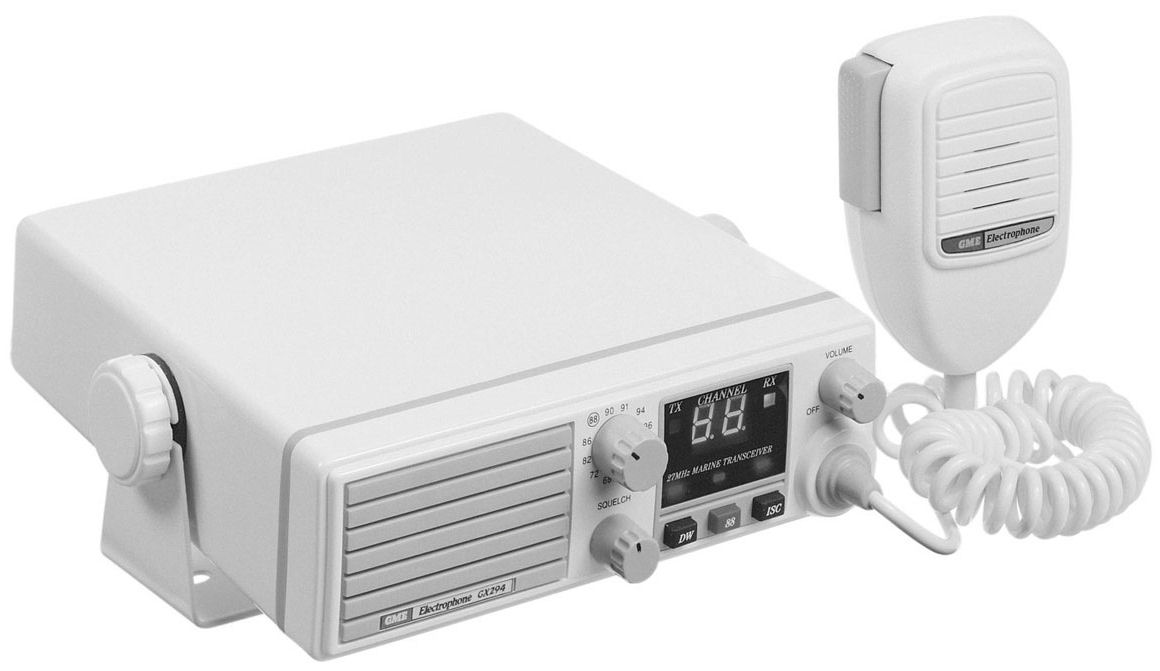

GME GX294

Type: Professional Marine Transceiver
Frequency Range: 27.680-27.980 (Australian band)
Modes: AM
RF Power Output: 4 W
Sensitivity: 0.4 uV (12 dB SINAD)
Selectivity: 12 KHz (-36 dB), 20 KHz (-60 dB)
Image rejection: 90 dB
Voltage: 10.8-15.2 VDC
Current Drain: RX: 350-800 mA
TX: Max 1.6 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 172*52*173 mm
Weight: ? Kg
Manufactured: Australia, 200x-200x
Other: 12 channels (10 fitted from factory)
