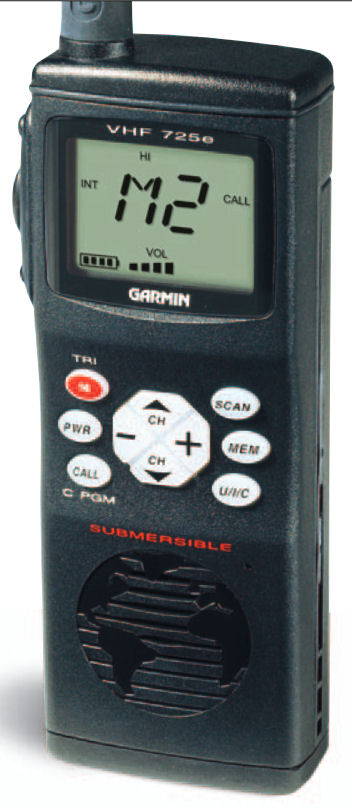

Garmin VHF-725E

Type: Professional Marine Transceiver
Frequency Range: 155-165 MHz (all International, Australian &
New Zealand channels)
Modes: FM
RF Power Output: Hi: 5 W (100 % duty cycle)
Lo: 1 W
Sensitivity: -0.3 uV (12 dB SINAD)
Selectivity: N/A
Image rejection: 70 dB
Voltage: 7.2-9 VDC (6*R6/AA)
Current Drain: RX: 200-700 mA
TX: Max 5 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 55*140*34 mm
Weight: 350 gr
Manufactured: 200x-200x
Other: Waterproof. Triple watch
