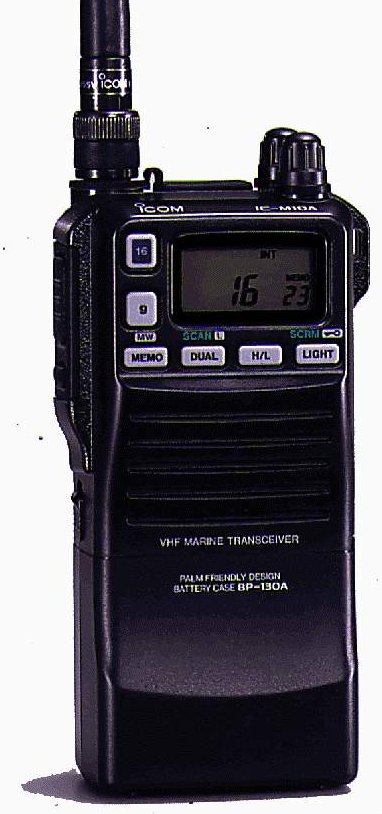

Icom IC-M10A

Type: Professional Marine Transceiver
Frequency Range: RX: 156-163 MHz
TX: 156-157.5 MHz
Modes: FM
RF Power Output: Hi: 6 W
Lo: 0.5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 6-15 VDC
Current Drain: RX: Max 300 mA
TX: Max 1.8 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 60 x 155 x 40 mm
Weight: 4220 gr (incl BP-174 battery)
Manufactured: 19xx-19xx
Other:
Related Documents:
