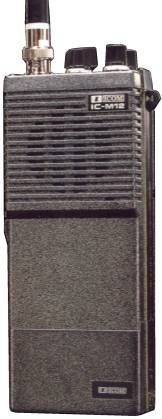

Icom IC-M12

Type: Professional Marine Transceiver
Frequency Range: RX: 156.025-162.550 MHz
TX: 156.025-157.425 MHz
Modes: FM
RF Power Output: 1 W
Voltage: 7-10.8 VDC
Current Drain: RX: 25-130 mA, TX: Max 350 mA
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 65*157*45 mm (with CM-3)
Weight: 510 gr (incl CM-3 battery and antenna)
Manufactured: 19xx-19xx
Other:
Related Documents: User Manual (3.05 MB)
