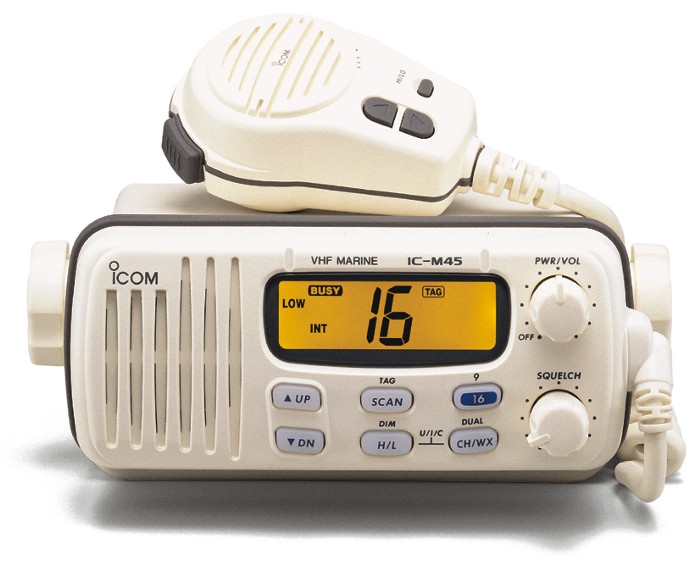

Icom IC-M45

Type: Professional Marine Transceiver
Frequency Range: RX: 156.025-163.275 MHz
TX: 156.025-157.425 MHz
Modes: FM
RF Power Output: HI: 25 W
Low: 1 W
Voltage: 13.8 V DC +/-15%
Current Drain (at 13.8 V DC): TX: Less than 6A
RX: 1.2A (max. audio)
Aerial Input: N/A
Dimensions: 60(W) 20(H) x 144(D) mm
Weight: 0.9 kg; 2 lb
Manufactured: N/A
Other: Dual/tri watch
Related Documents: User Manual (293 Kb)
