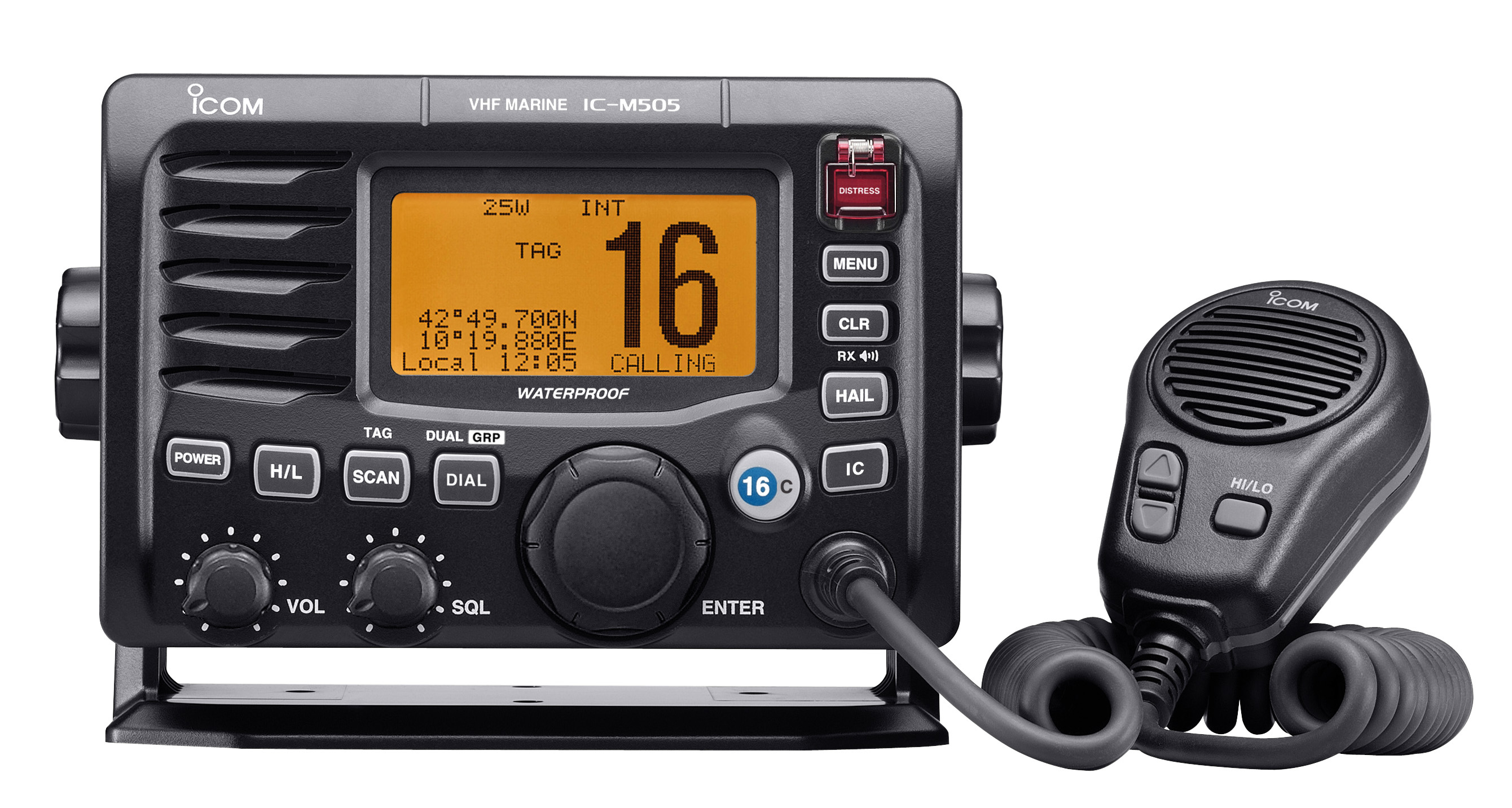

Icom IC-M505

Type: Professional Marine Transceiver
Frequency Range: RX: 156.000-163.425 MHz
TX: 156.000-161.450 MHz
Modes: FM/DSC
RF Power Output: 25W, 1W
Voltage: 13.8VDC (10.8 to 15.6 V)
Current Drain: RX: Max 1.5 A, TX: Max 5.5 A
Aerial Input: 50 OHM PL-259
Dimensions: 165(W) x 110(H) x 123.2(D) mm
Weight: 1450 gr
Manufactured: 2008
Other: Built in AIS Receiver
Related Documents: User Manual (1.05 MB)

Optional: COMMANDMIC III (Remote Control Unit)
