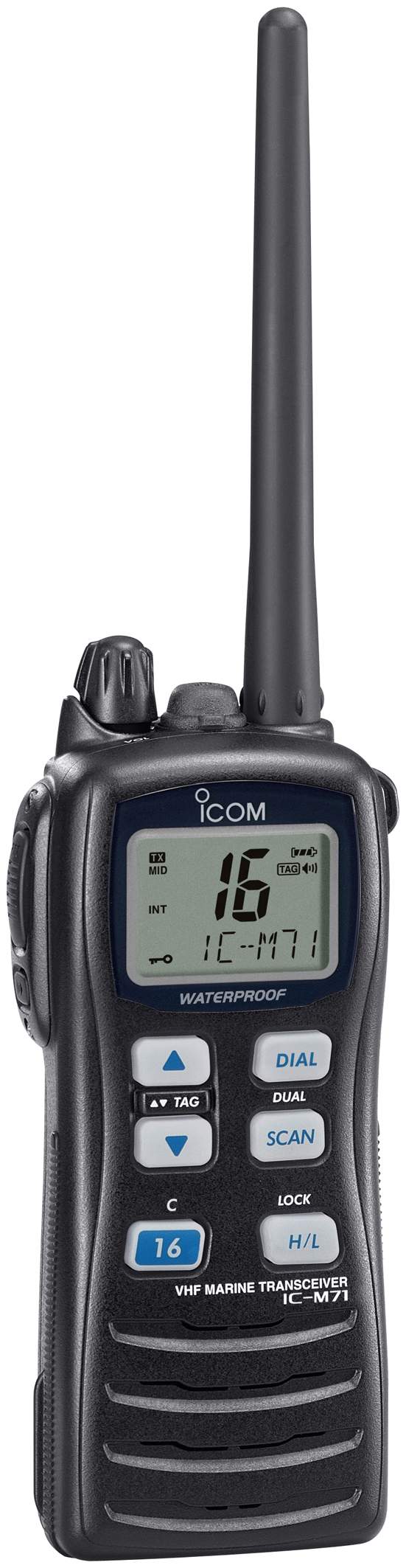

Icom IC-M71

Type: Professional Marine Transceiver
Frequency Range: TX: 156-161.450 MHz
RX: 156-163.425 MHz
Modes: FM
RF Power Output: Hi: 6 W, Mid: 3 W, Lo: 1 W
Memory Channels: INT, USA, +70 user (Dependant on version
Search Banks: N/A
Priority Channels: N/A
Scan Speed: N/A
Search Speed: N/A
Increment Steps: 25 kHz
Scan Delay: N/A
Voltage: 7.2 VDC
Current Drain: TX: 0.7-1.7 A
RX: Max 400 mA
Aerial Input: 50 ohms SMA
Dimensions (W*H*D): 52.5(W) x 125(H) x 30(D) mm
Weight: 280g (with BP-245 & Antenna)
Manufactured: 2007-20xx
Other: New Price in 2007: Approx 250
Related Documents: User Manual (1.4 MB)
