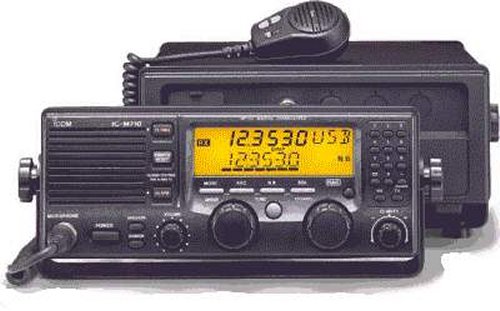

Icom IC-M710RT

Type: Professional Marine Transceiver
Frequency Range: TX: 1.6-27.5 MHz Marine channels
RX: 0.5-30 MHz
Modes: All-mode
RF Power Output: Hi: 150 W, Mid: 60 W, Lo: 20 W (PEP)
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: RX: Max 3 A
TX: Max 30 A
Aerial Input: 50 ohms
Dimensions (W*H*D): Main Unit: 292 x 117 x 317 mm
Controller: 292 x 116 x 66 mm
Weight: Main Unit: 7.25 Kg
Controller: 1.2 Kg
Manufactured:
Other: 1136 Channels (Max)
Related Documents: Service Manual (12.3 MB)
