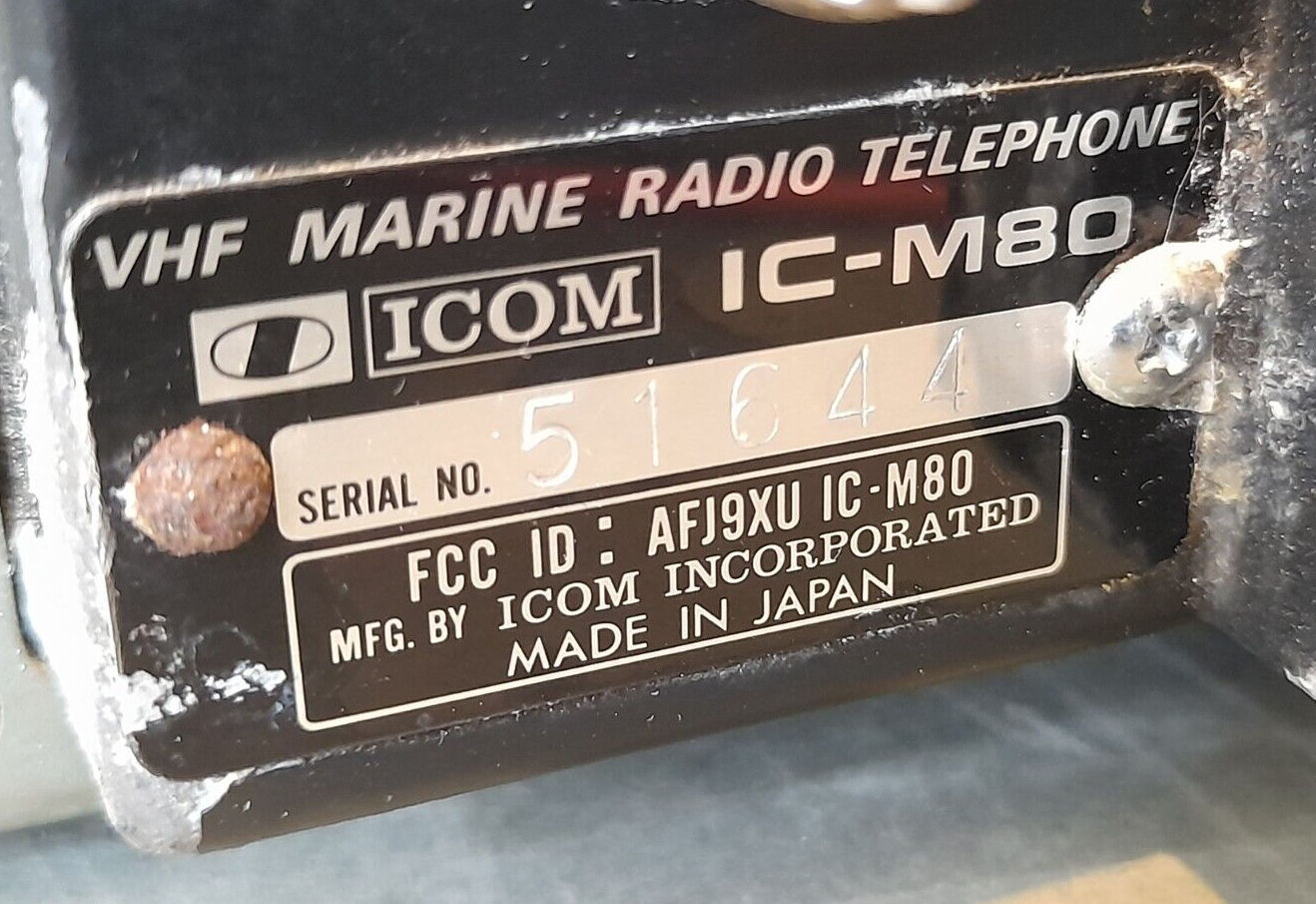

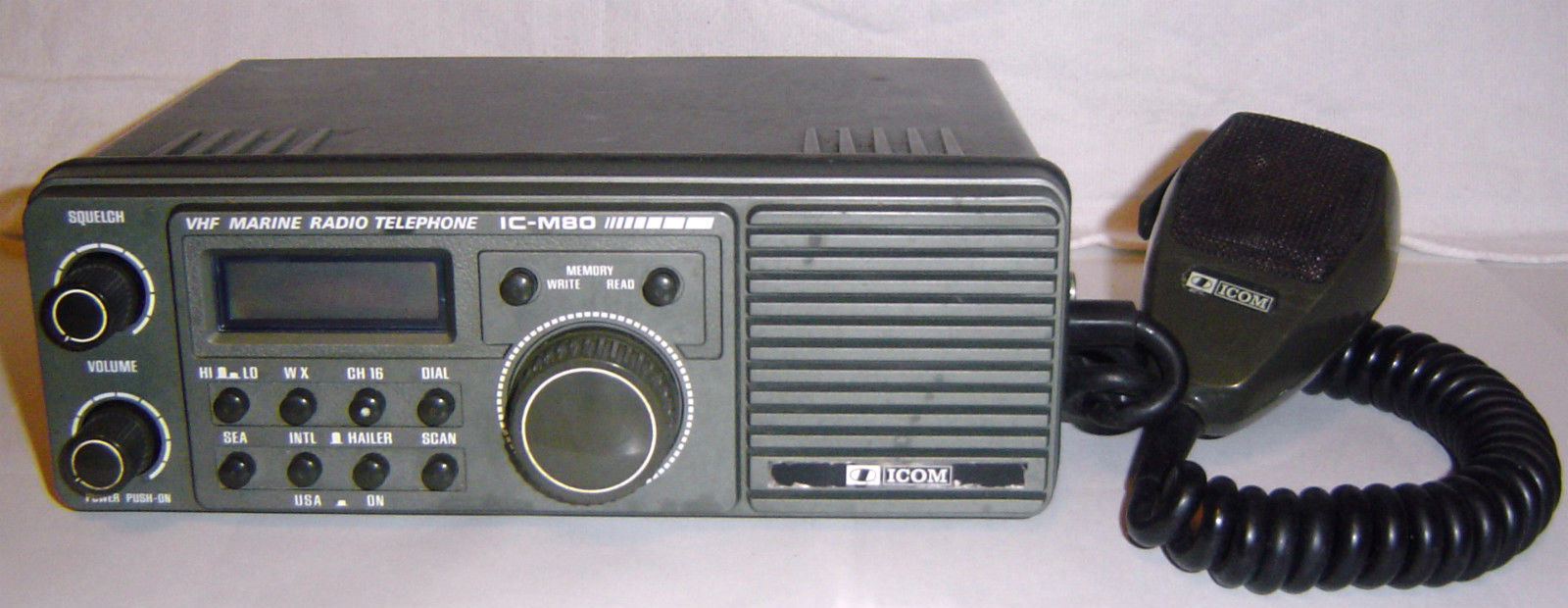

Icom IC-M80

Type: Professional Marine Transceiver
Frequency Range: TX: 156.000-157.500 MHz
RX: 156.000-163.000 MHz
Modes: FM
RF Power Output: Hi: 25 W, Lo: 1 W
Memory Channels: N/A
Search Banks: N/A
Priority Channels: N/A
Scan Speed: N/A
Search Speed: N/A
Increment Steps: 25 kHz
Scan Delay: N/A
Voltage: 13.6 VDC
Current Drain: TX: 1.3-5.5 A
RX: Max 800 mA
Aerial Input: 50 ohms SO 239
Dimensions (W*H*D): 228(W) x 78(H) x 208(D) mm
Weight: 2.1 kg
Manufactured: xxxx-xxxx
Other: N/A
Related Documents: Operating Guide (1.6 MB)
User Manual (3.3 MB)
