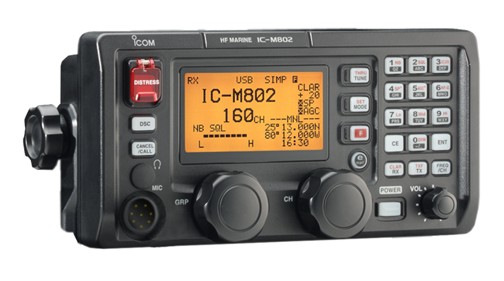

Icom IC-M802

Type: Professional Marine Transceiver
Frequency Range: RX: 0.530 MHz(continuous)
TX: 1.63 / 45 / 67 / 89 / 1214 / 1620 / 2223 / 2527.5 MHz (Approx)
Modes: SSB/AFSK/FSK/CW
(AM, Receive only)
Channels: 1355 Max
RF Power Output: 150, 60, 20W PEP (Selectable)
Voltage: 13.6V DC 15%
Current Drain: RX: Max 3A, TX: Max 30A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): Main Unit: 240 94 238.4 mm
Controller: 220 110 84.4 mm
Weight: Main Unit: 4.7kg; 10.36lb
Controller: 570g; 1.26lb
Manufactured: 2002-200x
Other:
Related Documents: User Manual (2.09 MB)
