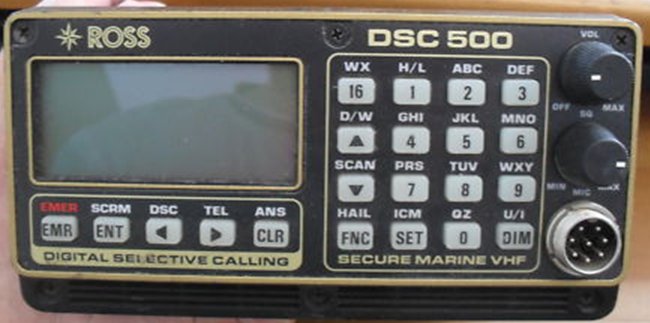

Ross DSC 500

Type: Professional Marine Transceiver
Frequency Range: RX: 156.025-163.775 MHz
TX: 156.025-159.175 MHz
Modes: FM
Memories: 57 channels
RF Power Output: 25W/1W (Selectable)
Voltage: 13.8VDC
Current Drain: RX: 0.6 A
TX: Max 6 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 184.1 x 82.6 x 63.8 mm
Weight: 2.54 Kg
Manufactured:
Other:
Related Documents: Operating Manual (4.49 MB)
