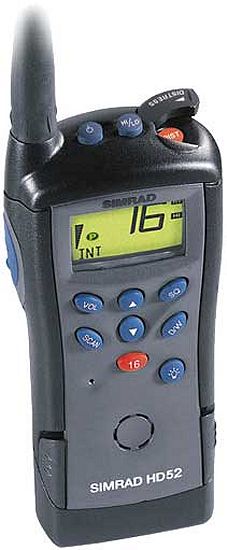

Simrad HD52

Type: Professional Marine Transceiver
Frequency Range: VHF, all intl./USA (incl. WX) channels (54+16).
Simplex and duplex
Modes: FM
RF Power Output: Hi: 5 W
Lo: 1 W
Sensitivity: <1 uV EMF / 20 dB SINAD
Selectivity: N/A
Image rejection: Better than 70 dB
Voltage: ? VDC
Current Drain: RX: 200 mA
TX: Max 1.5 A
Aerial Input: 50 ohms
Dimensions (W*H*D): 68*145*42 mm
Weight: 400 gr
Manufactured: xxxx-200x
Other: Submersible down to 1 m
Distress function with GPS-connection. Scanning
